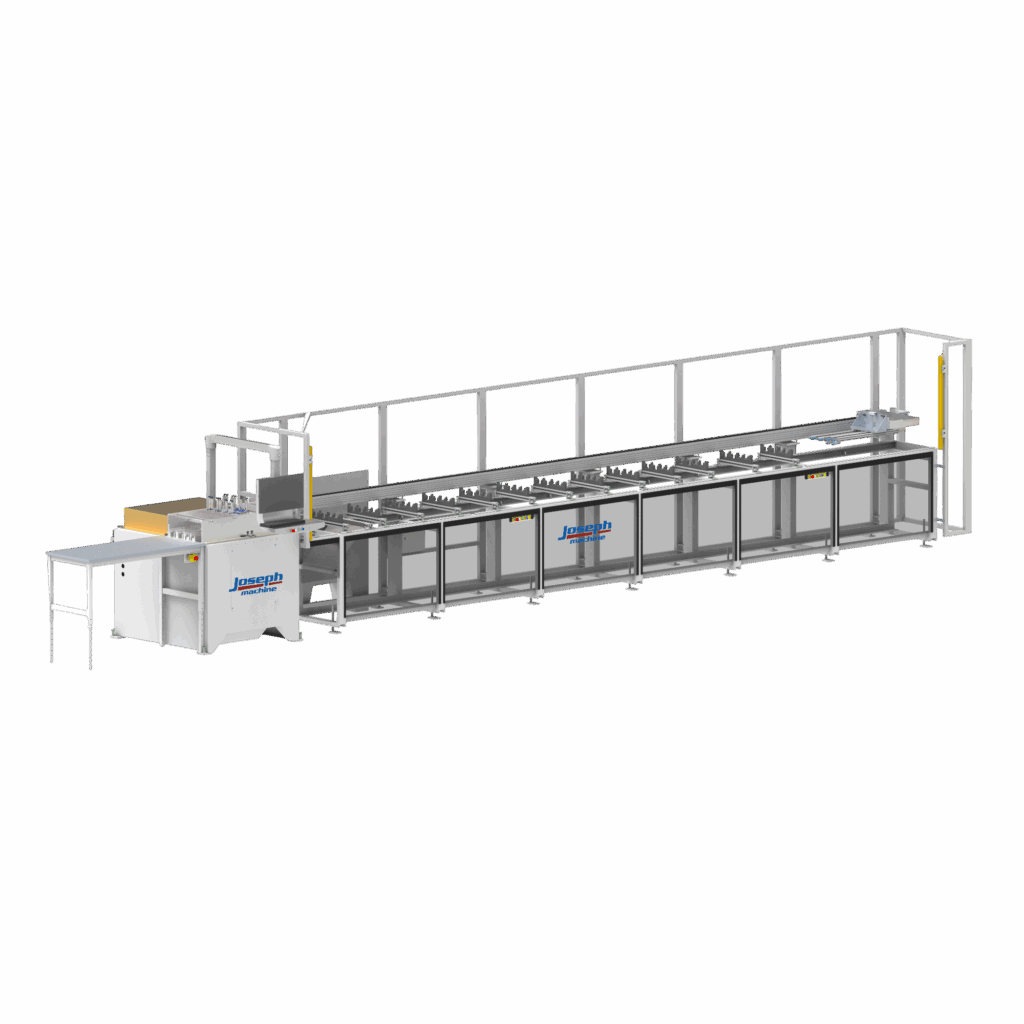

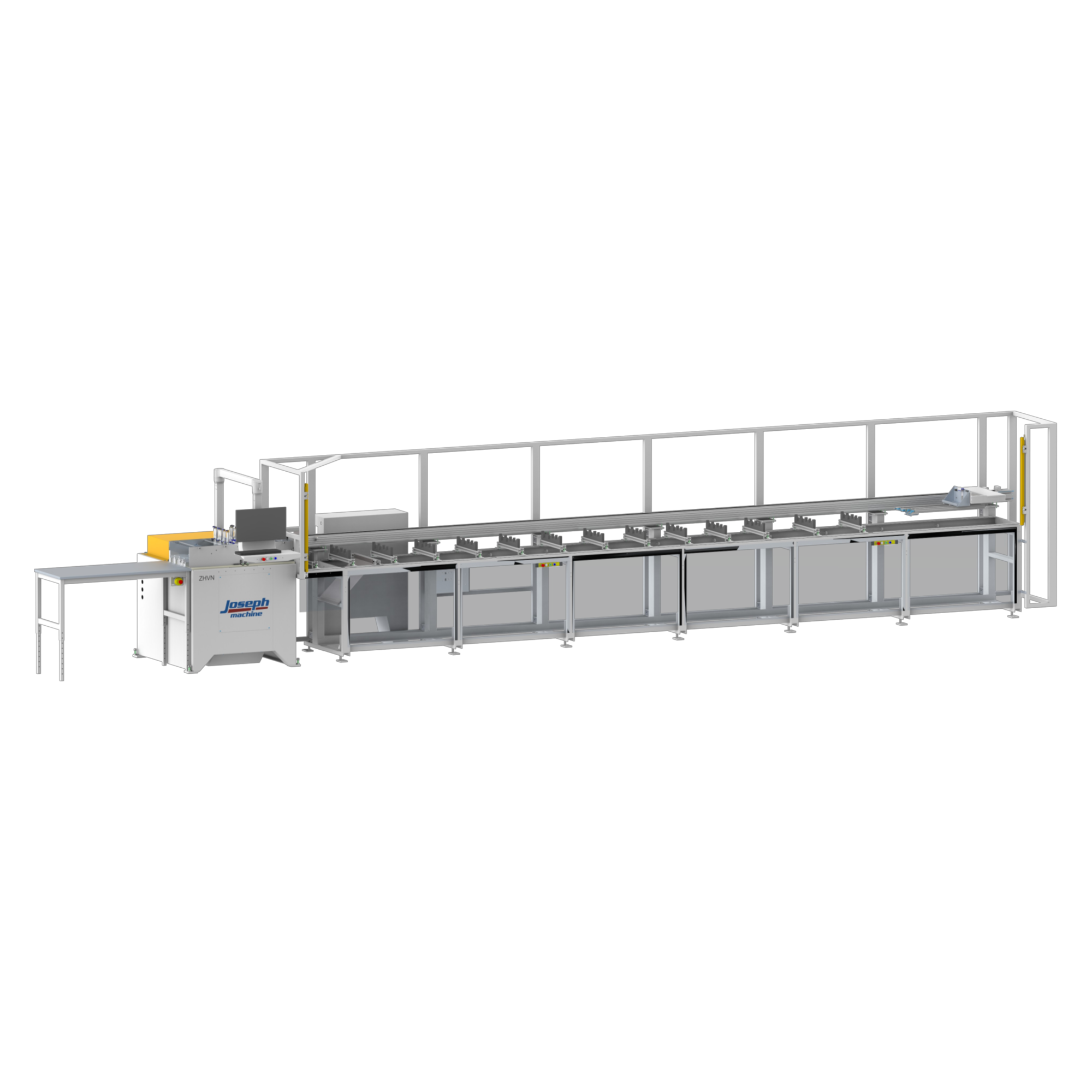

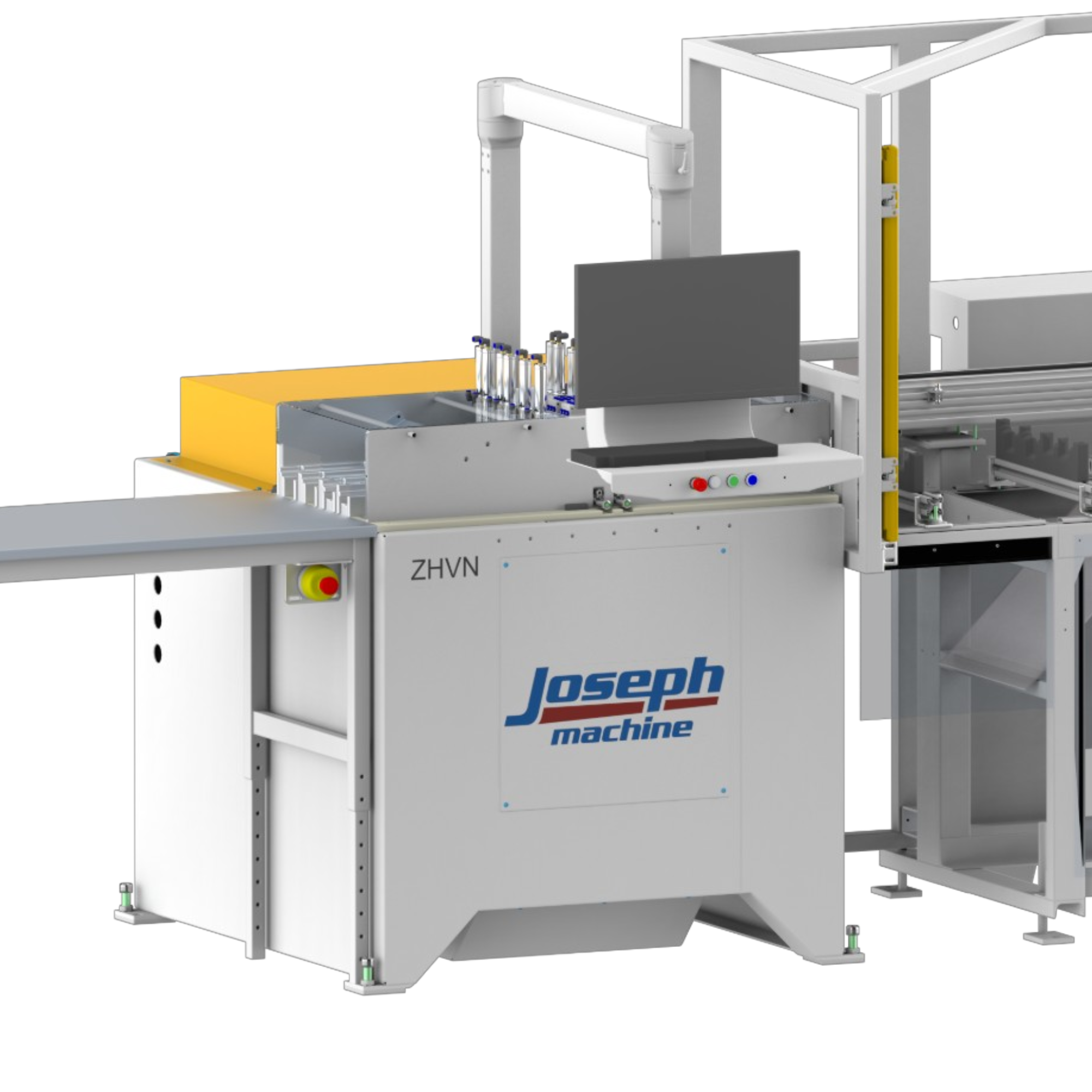

ZHVN-4545 PROCUT

Dual mitre saw cut in a fixed base, horizontal stroking assembly with pusher infeed technology.

  • Estimated Machine Cycle time: 8-10 seconds cut to cut
  • Cut length Tolerance: ±0.030
  • Fabrication Location Tolerance: ±0.010
  • Fabrication Tolerance: ±0.10
  • Ergonomic working height, fine adjustments made via leveling feet
  • Heavy duty powder coated steel frame
  • 1/2” Filter/Regulator with OSHA compliant lockout/tagout
  • Coalescing air filter
  • Two 45 degree saws equipped with 3 HP motors and 16” carbide tipped saw blades
  • Saw carriage ride on precision ground rails and linear bearings
  • Saws pneumatically activated by Air/Oil cylinders
  • Flow controlled saw stroke
  • Standard saw guard with vacuum port
  • Infeed
    • Servo controlled Infeed accommodates 16’ lineal
    • Left to Right or Right to Left feed orientation
    • Thru-Beam photo eyes for mill length detection
  • Electrical: 480V AC(15A – 3 Phase)
  • Fusible disconnect with OSHA compliant lockout/tagout
  • Controls – combined PC + PLC control system
  • Networkable
  • Production data can be downloaded using JMC CSV file format
  • Fixtures:
    • 2 or multi track custom fixtures
    • Custom tooling for fabrication
    • Machined anodized aluminum fixture
    • Alternative fixture material and coatings available
    • Vertical/Horizontal clamping
    • Fixture Identification
  • Saws
    • 18”, 20”, 22” diameter carbide tipped saw blade
    • 5 HP motor
    • Variable frequency drives with brakes
  • Infeed
    • Optional infeed lengths accommodate 20’ or 24’ lineals
    • Single set pre-loader to accommodate 16’, 20’, or 24’ lineals
    • Double set pre-loader to accommodate 16’, 20’, or 24’ lineals
    • Diffuse photo eyes for independent mill length detection
    • Quick change infeed gripper and UHMW guides
    • Linear encoder
  • Outfeed
    • 5’ table with stainless steel top
    • 10’ roller table
    • Power conveyor
    • Wiper table
  • Software Options
    • Lineal Optimization
    • Tail End utilization by stock parts or future batch parts
    • Label printing
  • Controls
    • Touch screen monitor
    • Additional monitor for infeed/outfeed
    • Variable frequency drive with brakes
    • Upgraded safety packages
    • Transformers available for different voltages
  • Custom color powder coating
  • Pro-Lube lubrication system for cutting
  • Auto-Lube system for machine lubrication
  • Dust collection system
