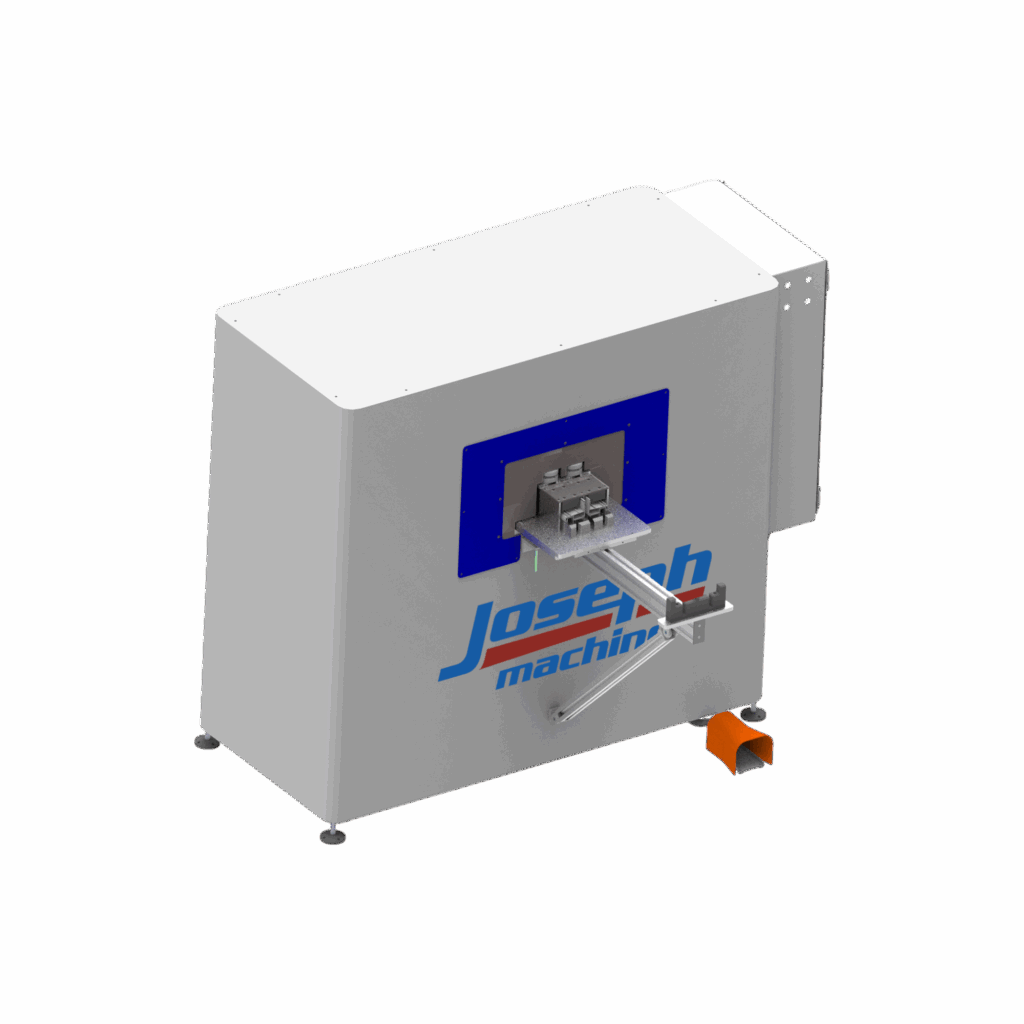

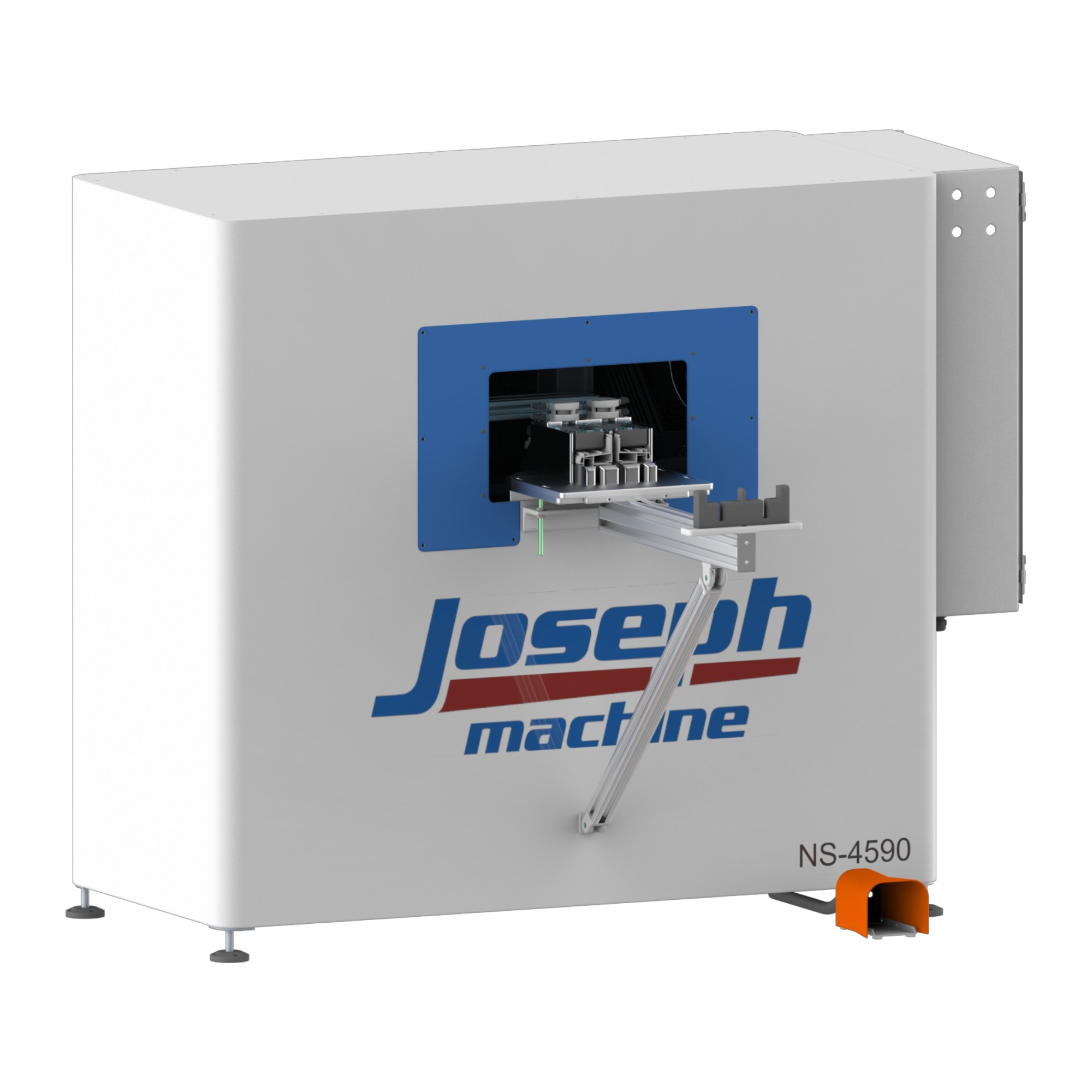

NS-4590

End notching saw, horizontal stroke across part, 45° & 90° mitre cut.

  • Estimated cycle time: 15-20 seconds per cycle
  • Fabrication Tolerance: ±0.010
  • Standard 30” material support on front of machine
  • Ergonomic working height (from 36-1/2” to 42”), fine adjustments made via leveling feet
  • Heavy duty powder coated steel frame
  • Scrap exits at rear of machine
  • 1/2” Filter/Regulator with OSHA compliant lockout/tagout
  • Coalescing air filter
  • Machine lubrication – Grease fittings at each linear bearing
  • One 45 degree saw
    • Equipped with a 1 ½ hp (3450rpm) motor
    • Cuts with a 12” carbide tipped saw blade
  • One 90 degree saw
    • Equipped with a 1 ½ hp (3450rpm) motor
    • Cuts with a 12” carbide tipped saw blade
  • Saw carriage rides on precision ground rails and linear bearings
  • Pneumatically activated by Air/Oil cylinder
  • Manually adjustable flow control on saw strokes
  • Electrical: 480V AC (15A – 3 Phase) hookup
  • Fusible disconnect with OSHA compliant lockout/tagout
  • Controls – PLC control system
  • Electrical foot pedal activation
  • Fixtures:
    • Two or multi pocket fixtures customized based on profiles
    • Machined anodized aluminum fixture
    • Alternative fixture material and coatings available
    • Vertical/Horizontal clamping
  • Adjustable material stops
  • Transformers available for different voltages
  • Custom color powder coating
  • Pro-Lube lubrication system for cutting
  • Auto-Lube system for machine lubrication
