Cut and Fabrication Machines for Extrusions

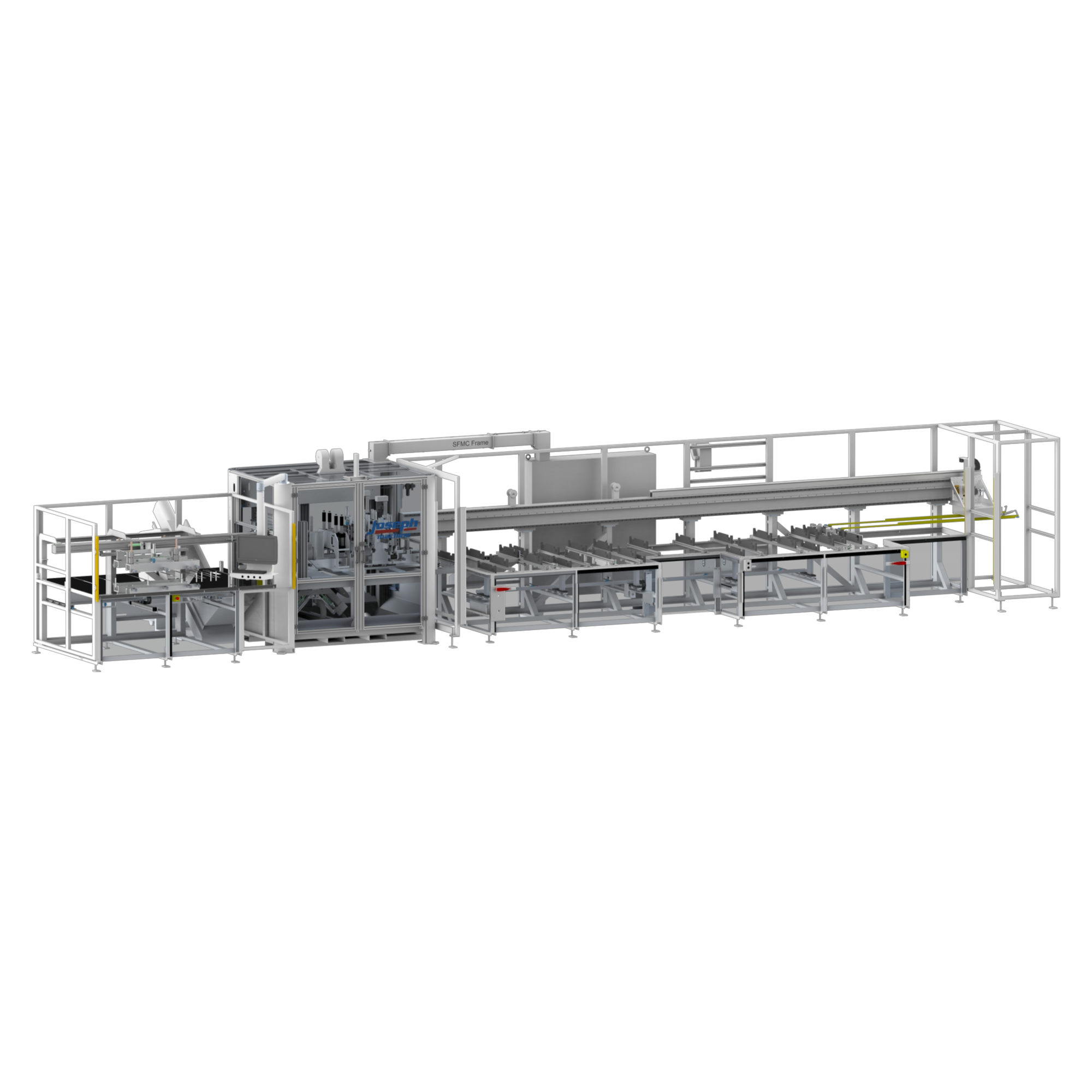

SFMC Frame Processor
Purpose-Built for Window Frame Production. This SFMC configuration is optimized for high-volume, precision window frame processing. Equipped with 45° double miter and/or 90° straight-cut saw modules, it adds dedicated notch saws for sloped sill systems to ensure perfect drainage geometry and tight-fitting assemblies. A tailored tooling package delivers every required fabrication in one pass—weep holes, installation holes, hardware preps, accessory notches, and drainage slot patterns—all precisely located along the profile length. By integrating cutting and fabrication into a single, automated flow, this SFMC reduces labor, eliminates secondary handling, and delivers consistent, production-ready window frame components at unmatched speed and quality.
Key Benefits of the SFMC Frame Processor
- One-pass cutting and fabrication for complete casement parts
- Configurable tooling to match your casement system requirements
- Precise, repeatable hole and slot locations for flawless assembly
- Faster cycle times with reduced handling and rework- automated pusher system for accurately moving parts in to the machine
- Advanced safety systems to keep operators safe
- Customized controls and screens with easy to use interfaces
- Top, bottom and side tooling across multiple tracks available
- Fully enclosed working area contains debris and noise
- Autoloading and unloading options
- High accuracy on both fabrication tolerance and cut lengths
- Customized fixturing for secure work holding
- Future proof controls system architecture
- Designed and built in the USA using US supply chain components
Videos of the SFMC Frame Processor
Output Examples of the SFMC Frame Processor
- Sloped sill frame members with precision drainage notches
- Weep-holed head and jamb members ready for direct assembly
- Accessory-notched frame profiles for clip or mullion connection
- Fully cut and fabricated frame sets processed in a single pass
Use Cases of the SFMC Frame Processor
- High-volume vinyl frame production: Large window plants running multiple shifts to meet residential or commercial frame demand with minimal labor.
- Slope sill systems: Frame manufacturing lines requiring notch saws for precision drainage geometry and perfect sill-to-jamb fit.
- Custom frame configurations: Plants offering multiple frame series, each with unique hole patterns, drainage layouts, or accessory slots.
