Custom fixtures, guides
16’ to 24’ CNC in-feed provides precise accuracy for fabrication placement and OA part length
Thru-beam photo eyes for automatic stock length detection
Easy systems start by control cables at in-feed load station, for part grip, and cycle start
Saw assemblies with 16” carbide tipped saw blades
Servo and ball-screw horizontal blade feed
Hydro-pneumatic blade feed along 45° axis
Saw blade chassis guided on precision rails and linear bearings
3 HP direct drive variable frequency saw blade motor, spin at 3450 RPM
PC HMI with .NET ,Windows Operating System
Network ready and batch production capable
Machine sequencing and CNC control through industrial programmable logic controller
18” x 5’ exit-side table with stainless steel top
Pneumatic clamping system
Heavy duty steel inner frame
Aluminum sealed outer safety housing
Powder coated finish, blue over white
1/2” filter/regulator with OSHA compliant
lockout/tagout
Tapered sheet metal enclosed bottom with vacuum port (Substituted for pull out trays for aluminum machines)
Out feed scrap chute
Left to right or right to left orientations
Dust collection system
Custom color finishes
Safety package upgrades
Auto-lubrication system for bearing and ball-screw lubrication
Pro-Lube lubrication system for extended blade life
2 or multi track custom fixtures
Machined anodized aluminum fixtures
Alternative fixture material and coatings available
Vertical/Horizontal clamping custom designed to profile design
Servo controlled positioning along 45° axis for saws via ball screw 18”, 20”, 22” diameter carbide tipped saw blade
5 HP saw motors
Electric drills
Electric router with variable frequency drives
Hydraulic system for high power fabrication to process aluminum extrusions.
Full CNC control in all axis
Upgrade to Allen Bradley Control System
Transformers available for different voltages
In-feed:
Dual axis in-feed for height and width simultaneous processing
Custom in-feed lengths accommodate 20’or 24’ lineal
Optional pre-load systems
Diffuse photo eyes for independent mill length detection
Quick change in-feed gripper and UHMW guides
Linear encoder
Optional gear rack system for higher precision
Out-feed:
10’ roller table standard
Power conveyors
Optional wiper tables & extractor systems
Optional laser marking stations

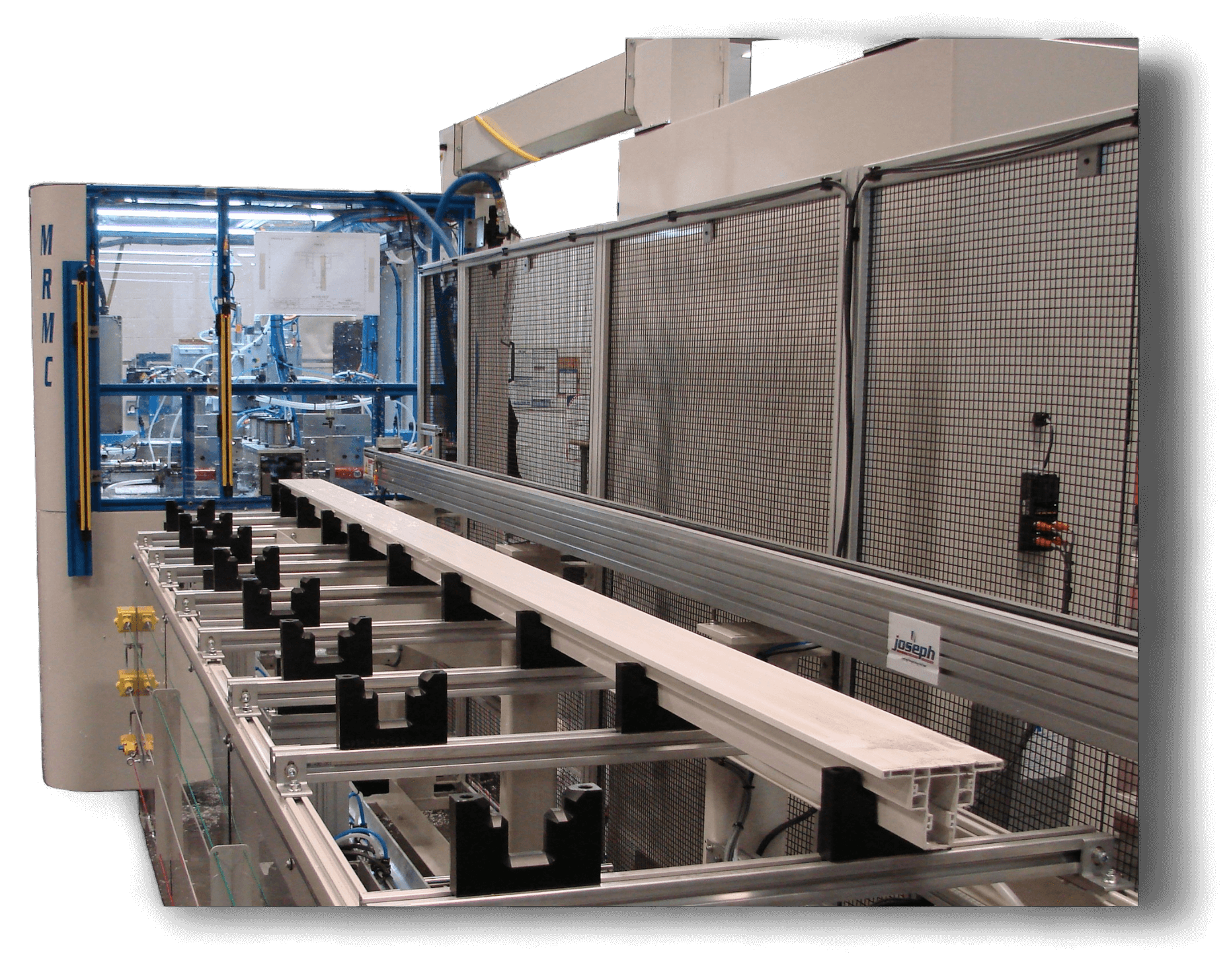

Joseph Machine MRMC processing vinyl
VIDEO
Tour of Joseph Machine MRMC Processor
