CNC Machining Centers

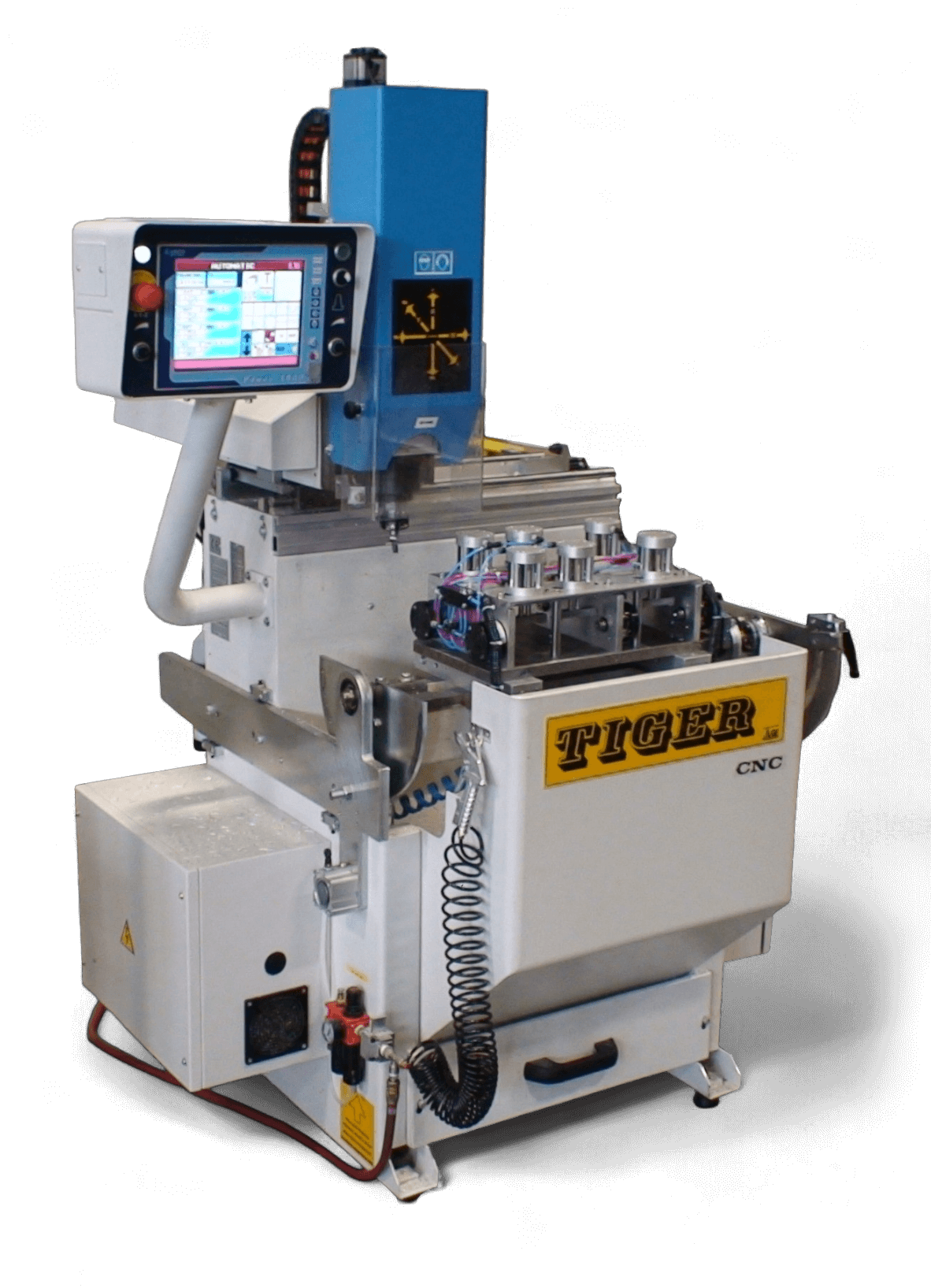

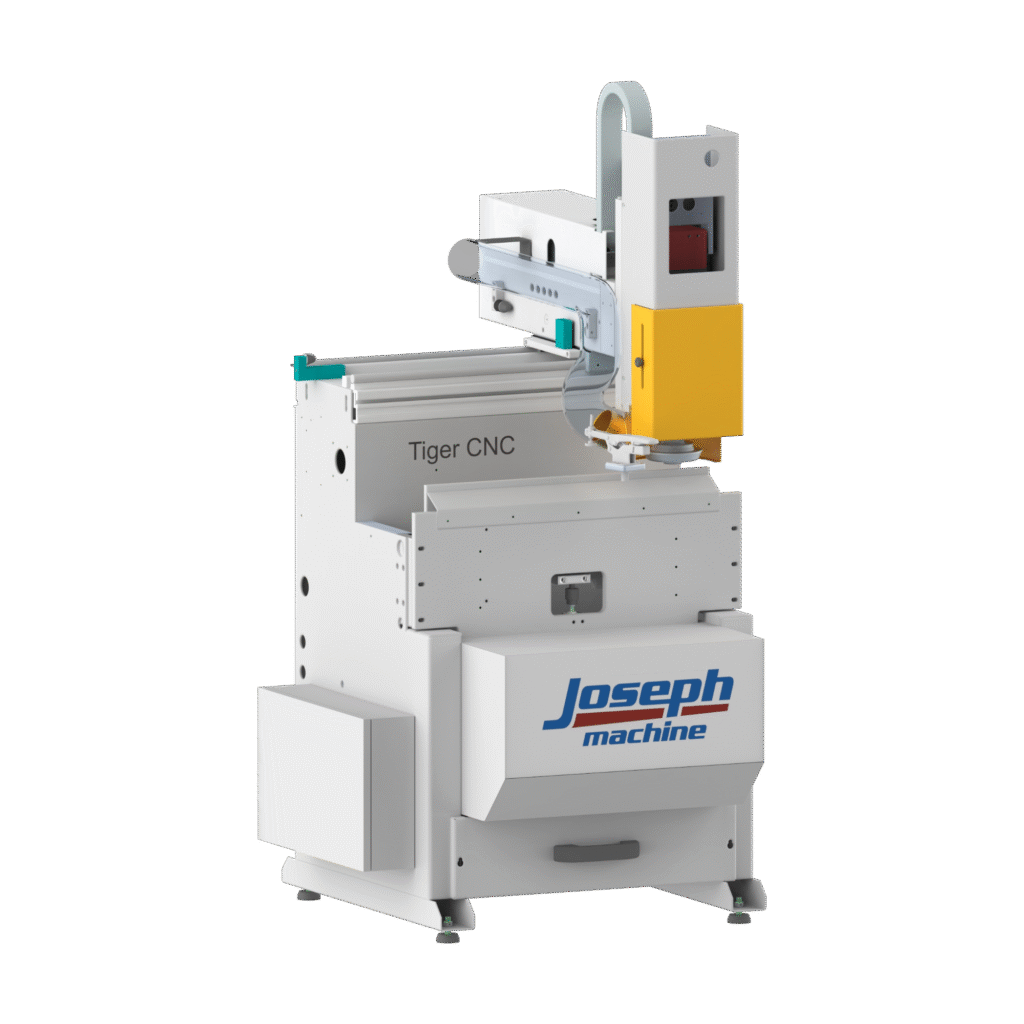

Tiger CNC 3-Axis Copy Router
The Tiger is a versatile 3-axis CNC copy router with quick-change tooling capability, designed for precision machining of light alloys, PVC, tubular steel, and stainless steel. It offers a working capacity of 470 x 180 x 140 mm at 0°, and 470 x 180 x 90 mm at ±90°, with a machining tolerance of ±0.2 mm. Built for speed and accuracy, the Tiger uses brushless axis motors delivering travel speeds of 80 m/min (X-axis), 30 m/min (Y-axis), and 30 m/min (Z-axis). The CNC programmer features a color touchscreen with dedicated LGF software, program queuing capability, and a USB interface for easy file transfers. The rotating workbench positions at 90°, 0°, and -90°, with intermediate manual angles, while variable spindle and axis speeds allow fine-tuning for different materials. Pneumatic vices with scratch-resistant plastic jaws ensure secure, damage-free clamping, and the integrated tool spraying system keeps cuts clean and extends tool life.
Key Benefits of the Tiger CNC 3-Axis Copy Router
- Quick-Change Tooling Capability — Reduces setup time and maximizes productivity.
- Multi-Material Machining — Works with aluminum, PVC, tubular steel, and stainless steel.
- High-Speed Axis Movement — Brushless motors enable rapid positioning and shorter cycle times.
- Compact Rotating Bench — 90°, 0°, -90° positions with manual intermediate angles for versatility.
- Precision Performance — ±0.2 mm tolerance ensures tight, repeatable machining.
- User-Friendly Controls — LGF CNC with touchscreen, program queuing, and USB import.
- Adjustable Cutting Parameters — Variable spindle and axis speeds optimize results for different materials.
- Safe & Secure Clamping — Pneumatic vices with non-marring jaws protect profile surfaces.
- Efficient Operation — Integrated chip drawer, tool spraying system, and clamp positioning guidance software.
Videos of the Tiger CNC 3-Axis Copy Router
Output Examples of the Tiger CNC 3-Axis Copy Router
- Window & Door Hardware Cutouts – Lock pockets, hinge recesses, and drainage slots.
- Curtain Wall Mullion Details – Machined access holes, mounting slots, and connector cutouts.
- Architectural Trim Features – Decorative grooves, slots, and notches in aluminum or steel profiles.
- Data Center Equipment Components – Rails, brackets, and channel profiles with precision slotting.
- Transportation Profiles – Structural and trim features for RVs, trailers, and specialty vehicles.
- Renewable Energy Hardware – Mounting brackets, alignment holes, and slotted racking members.
Use Cases of the Tiger CNC 3-Axis Copy Router
- Fenestration & Architectural Systems
- Precision feature machining for window and door profiles.
- Milling of curtain wall framing members for connectors and fasteners.
- Industrial & Structural Fabrication
- Machining small-to-medium aluminum and steel profiles for enclosures and automation systems.
- Routing and slotting of light alloy frames and guards.
- Transportation & Vehicle Manufacturing
- Machining structural and accessory features in vehicle frame profiles.
- Drilling and routing lightweight trim and fitment parts.
- Energy & Technology Infrastructure
- Machining of solar racking hardware and supports.
- Profile preparation for data center containment and racking systems.
- Specialty Manufacturing
- Decorative and functional machining for exhibit and display structures.
- Small-run precision parts for custom architectural installations.
