CNC Machining Centers

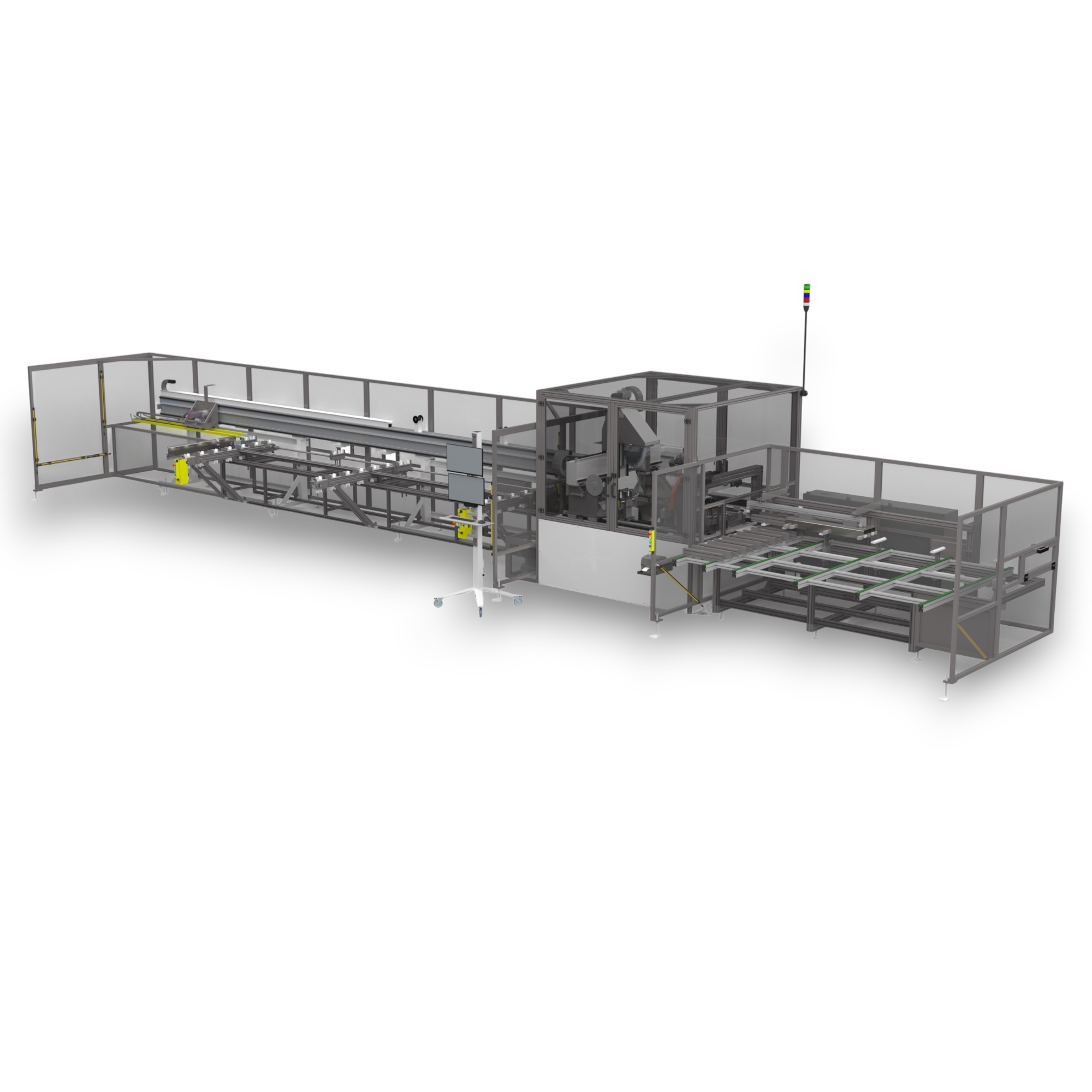

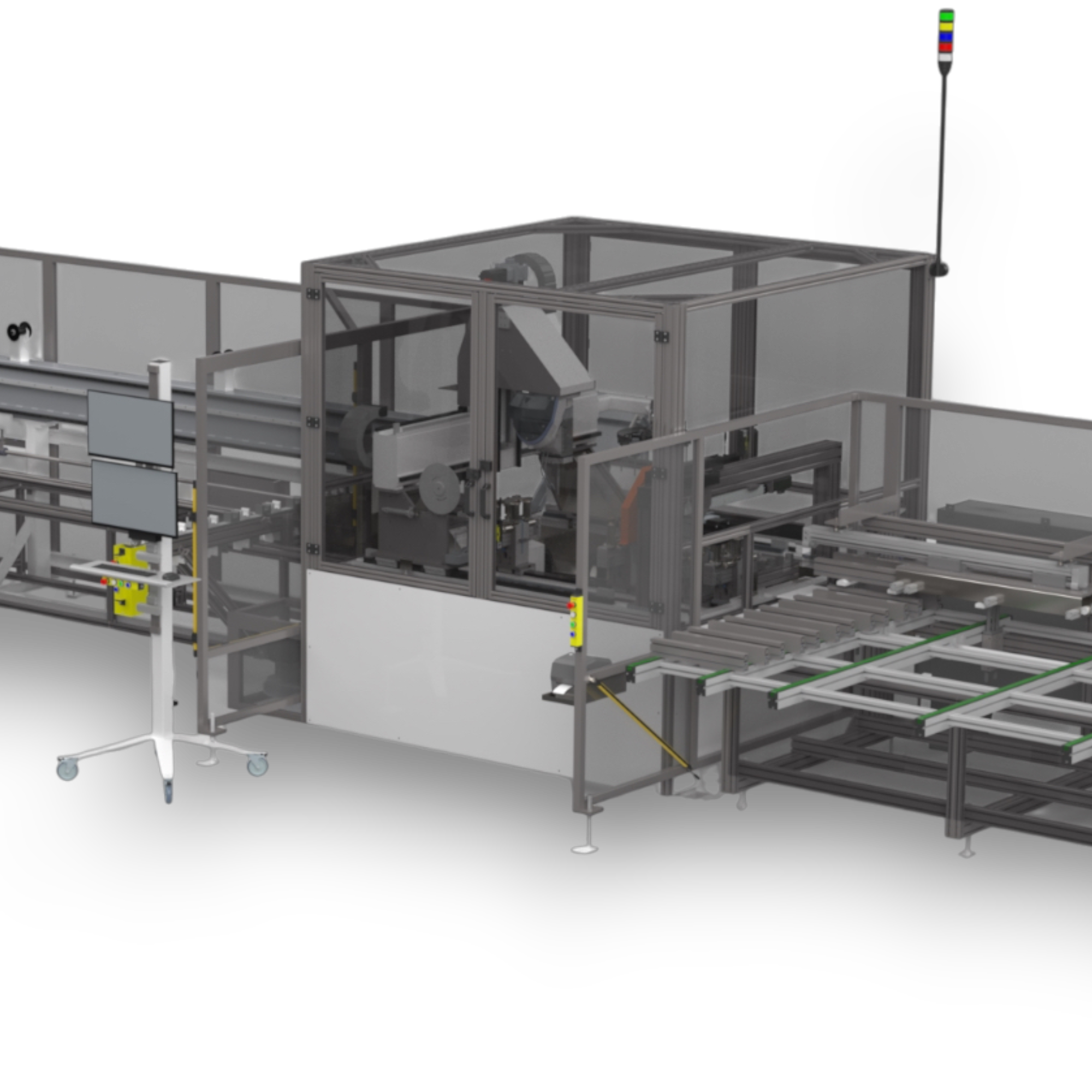

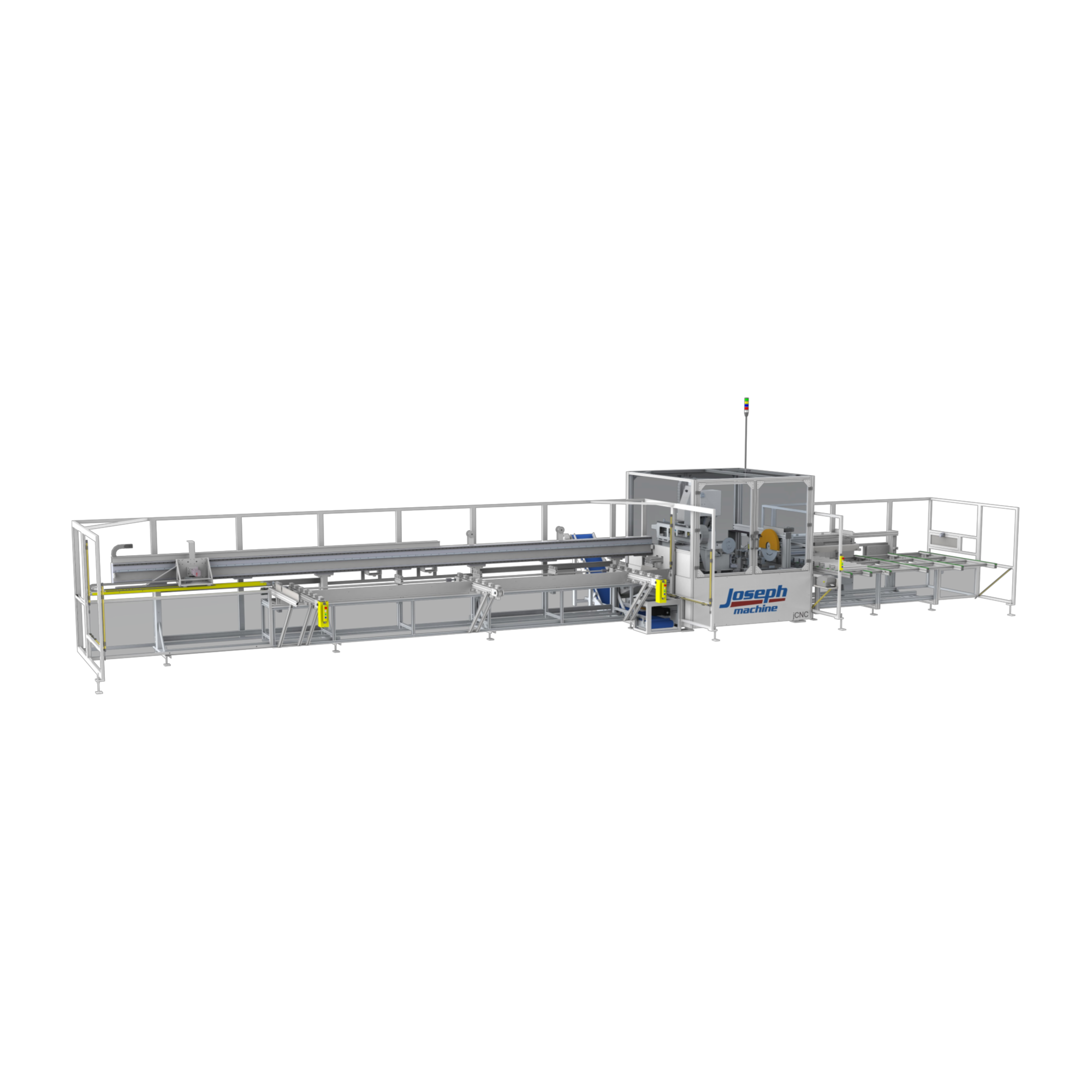

jCNC Processor
5 Axis, Multi tracks and a straight cut saw. The jCNC is a swiss army knife for high speed, flexible part fabrication. Featuring configurable infeeds in either single or multi track configurations, the jCNC also has a 5 axis head with an 8 tool changer that can span a 36″ working area along X and a 16″ Y with a 10″ Z. Using aggregate heads, this enables access to all sides of an extrusion for fabrication. Servo controlled clamps reposition automatically during fabrication and a dedicated 90 degree cut off saw enables high speed, CNC driven part processing.
Key Benefits of the jCNC Processor
- Advanced Beckoff control system
- Parallel cutting and processing possible
- High accuracy between fabrications due to large X working travel
- Precise work holding with hardened rollers that will not scratch parts
- Advanced safety systems to keep operators safe
- Customized controls and screens with easy to use interfaces
- Fully enclosed working area contains debris and noise
- Autoloading and unloading options
- High accuracy on both fabrication tolerance and cut lengths
- Future proof controls system architecture
- Designed and built in the USA using US supply chain components
Output Examples of the jCNC Processor
- Architectural curtain wall fabrication in pairs
- Multitrack sliding door track fabrication
- Data center flooring systems
- X rail / 8020 custom part fabrication
Use Cases of the jCNC Processor
Architectural Curtain Wall Fabrication
- Fabricate Pairs of Mullions Simultaneously
- The jCNC’s multi-track configuration allows for the simultaneous processing of paired aluminum mullions or transoms, making it ideal for high-volume curtain wall production.
-
- Drill, slot, notch, and mill complex hardware pockets
- Achieve high accuracy across long profiles with up to 36″ X-travel
- Clean, scratch-free handling with hardened roller supports
- CNC-driven 90° cut-off saw eliminates secondary saw ops
Data Center Infrastructure Manufacturing
- Floor Grids, Enclosure Frames & Cable Trays
- The jCNC enables precise fabrication of long, lightweight extrusions used in:
- Raised access flooring cross members
- Drop-in ceiling grid rails
- Rack frame components and cable channels
- High-speed, multi-side processing with aggregate head access
- Future-proof Beckhoff control system ensures easy integration
Aerospace Component Fabrication
- Multi-Side Access for Structural Profiles
- For aerospace applications requiring tight tolerances and advanced geometries, the jCNC supports:
- High-precision drilling, countersinking, and slotting on all sides of the profile
- 5-axis head with tool changer allows for flexible operations
- Enclosed work zone contains debris and improves cleanliness
- High rigidity and servo-controlled clamps ensure part stability
- Automotive Component Production
Modular Part Processing Without Tool Changes
- The jCNC is ideal for high-mix, low-volume automotive work, including:
- Bumper frame extrusions
- Battery enclosure channels
- Seat and roof rail structures
- Switch between part styles via programming — no dedicated tooling required
- Easily accommodates aluminum, steel, and composite profiles
RV & Trailer Component Manufacturing
- Multi-Track Sliding Door and Frame Part Fabrication
- The jCNC enables trailer and RV manufacturers to:
- Process multiple tracks or panel components in a single cycle
- Drill, mill, and slot for hinges, tracks, and fasteners
- Achieve tight cut length tolerances across long profiles
- Run aluminum or fiberglass extrusions with minimal operator setup
Custom Extrusion & X-Rail Processing (80/20, Framing Systems)
- Swiss Army Knife for Modular Aluminum Systems
- Whether you fabricate t-slot profiles, automation frames, or modular enclosures:
- Use the full 5-axis head and 8-tool changer for precise holes, taps, and connector access
- Run custom part programs with zero mechanical changeover
- Process parts in parallel tracks for maximum throughput
- Fully enclosed machining keeps chips and noise contained
