Specialty Window & Door Fabrication Machinery

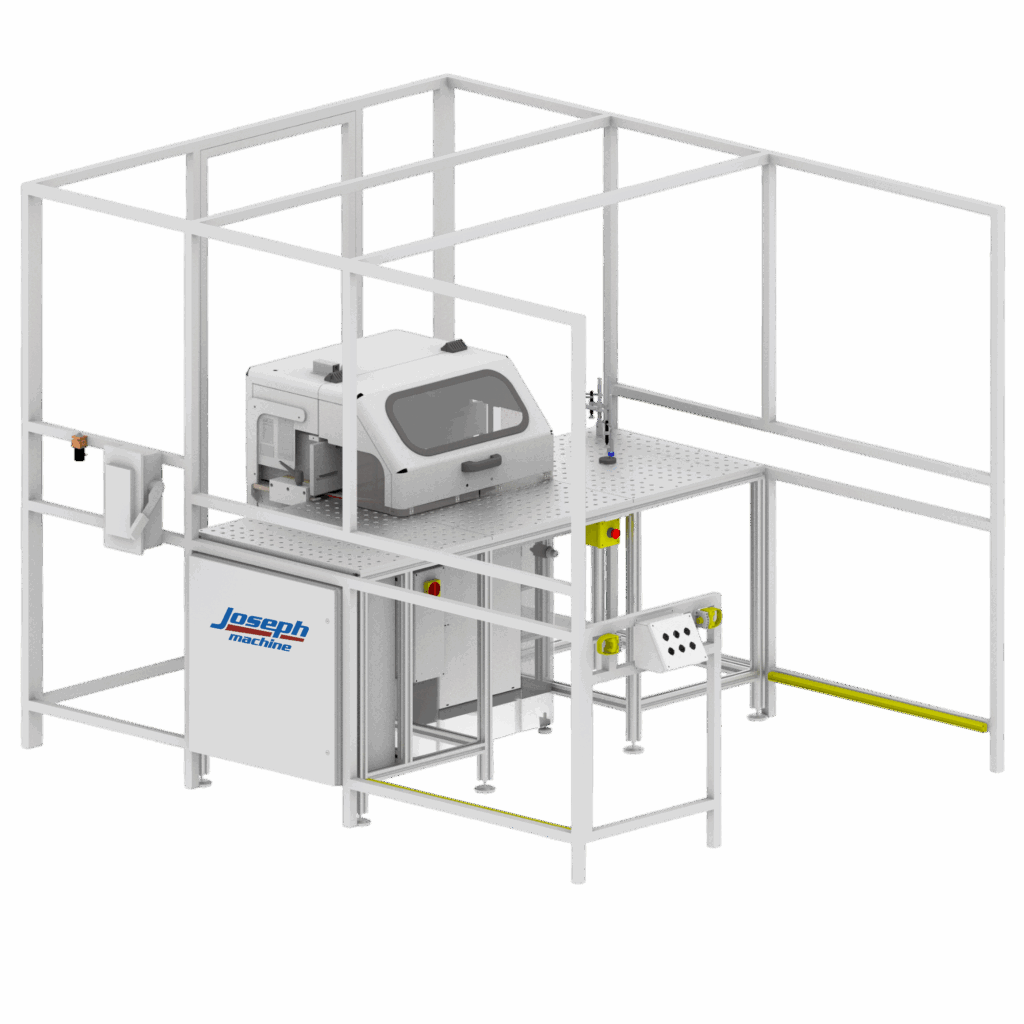

VUM Upcut Saw Station
The VUM is a variable angle upcut saw with the unique quick fixture table top designed to make cutting complex angles on the ends of geometric window profiles safe, fast and accurate. This machine typically replaces a vertical chop saw and the quick locking fixtures along with two hand controls ensure the operator is safe while processing complex cuts.
Key Benefits of the RTM-1000
- Dual adjustable angle saws (-22.5° to +22.5°) for versatile geometric cuts.
- Ball screw positioning for both moving head and perpendicular support arm.tant.
- Vertical blade stroke from bottom for cleaner cuts and reduced burrs.
- Integrated outrigger support for arched and specialty-shaped profiles.
- ±0.031″ cut length tolerance and ±0.5° fabrication tolerance for high-precision results.
- 8–10 second cycle time for fast production throughput.
Videos of the RTM-1000
Output Examples of the RTM-1000
- Perfectly matched mitre joints for octagon window frames.
- Consistent angled cuts for gable-style window systems.
- Smooth, burr-free cuts on curved and specialty extrusions.
- High-speed batch processing of geometric window components.
Use Cases of the RTM-1000
- Round Top Windows & Sills – Precision cutting of curved profiles.
- Gabled Windows – Consistent mitre accuracy for complex angles.
- Octagon Windows – Accurate multi-sided cuts with repeatable setups.
- Custom Aluminum & PVC Profiles – High tolerance cutting for architectural and specialty shapes.
key benefits
Key Benefits of the RTM-1000
- Dual adjustable angle saws (-22.5° to +22.5°) for versatile geometric cuts.
- Ball screw positioning for both moving head and perpendicular support arm.tant.
- Vertical blade stroke from bottom for cleaner cuts and reduced burrs.
- Integrated outrigger support for arched and specialty-shaped profiles.
- ±0.031″ cut length tolerance and ±0.5° fabrication tolerance for high-precision results.
- 8–10 second cycle time for fast production throughput.
videos
Videos of the RTM-1000
output examples
Output Examples of the RTM-1000
- Perfectly matched mitre joints for octagon window frames.
- Consistent angled cuts for gable-style window systems.
- Smooth, burr-free cuts on curved and specialty extrusions.
- High-speed batch processing of geometric window components.
use cases
Use Cases of the RTM-1000
- Round Top Windows & Sills – Precision cutting of curved profiles.
- Gabled Windows – Consistent mitre accuracy for complex angles.
- Octagon Windows – Accurate multi-sided cuts with repeatable setups.
- Custom Aluminum & PVC Profiles – High tolerance cutting for architectural and specialty shapes.
