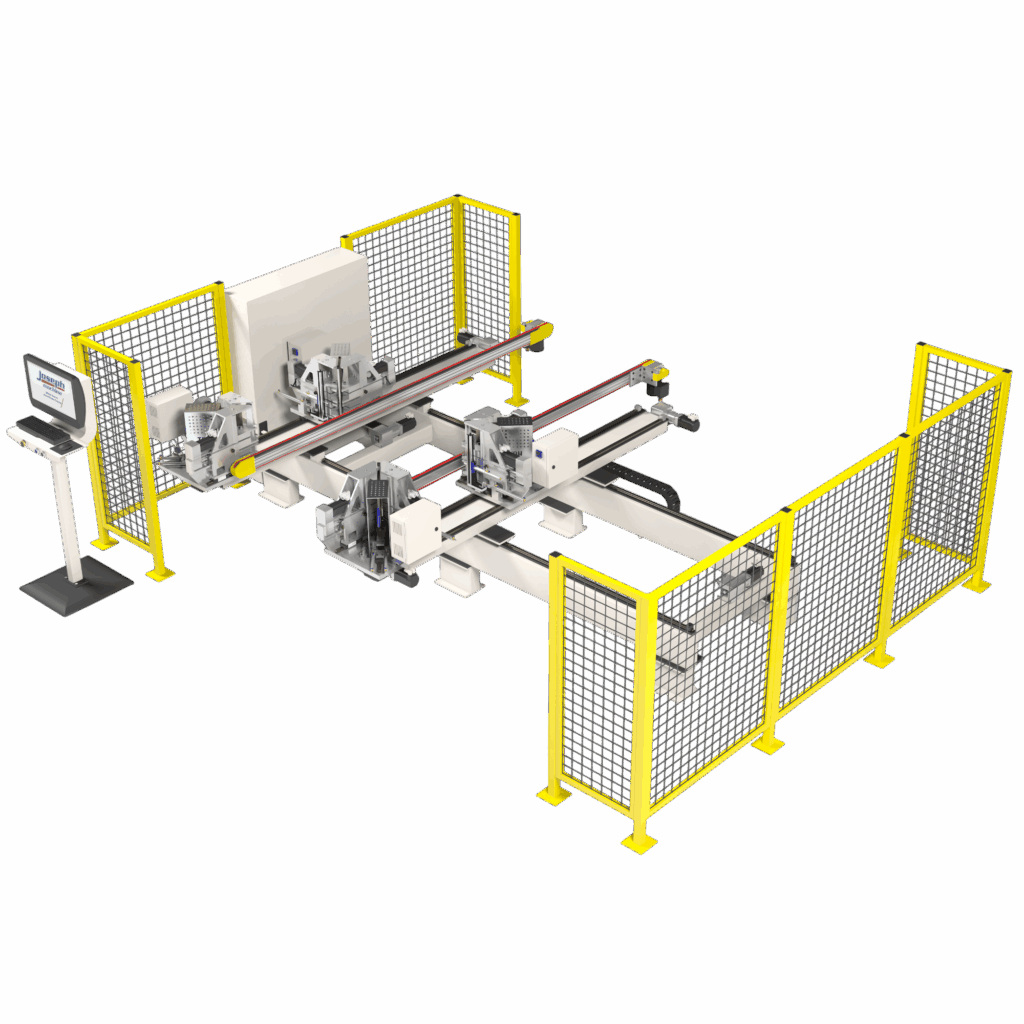

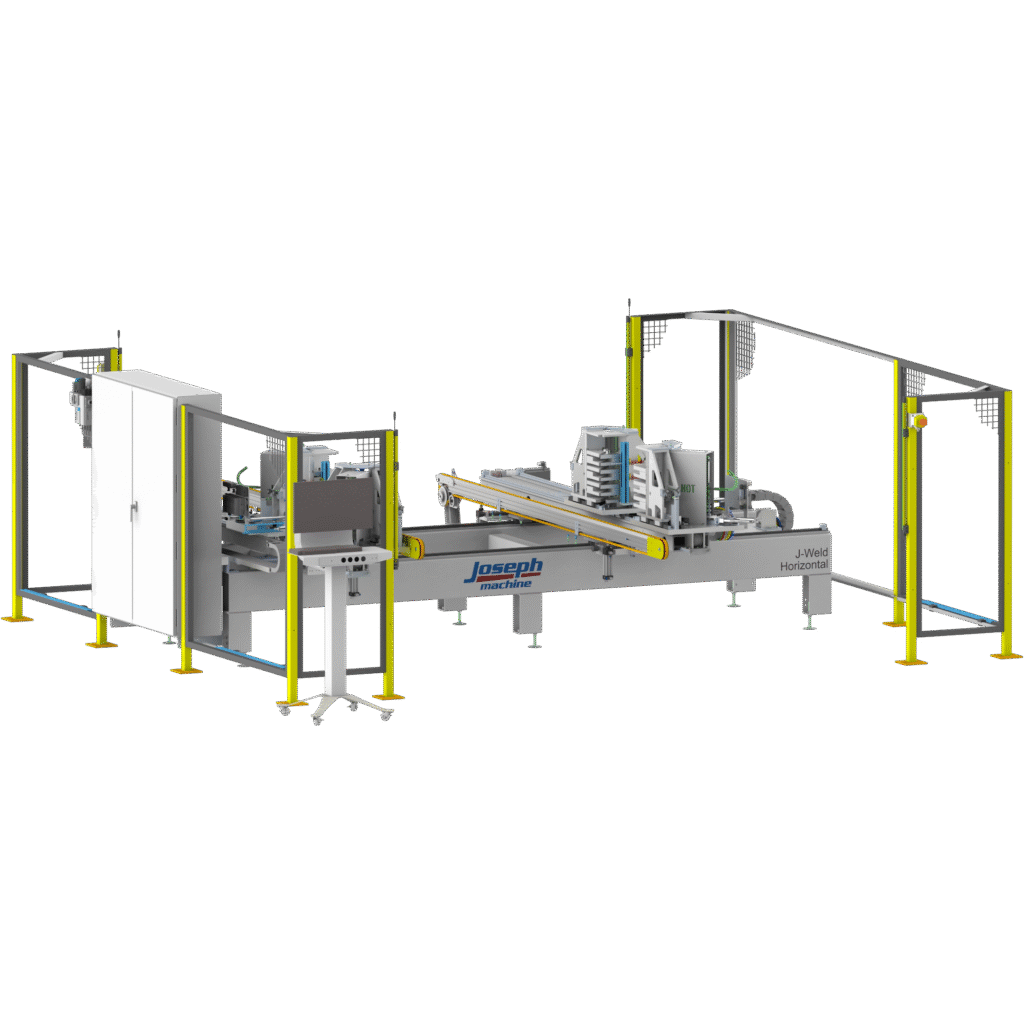

J-Weld 4 Point Horizontal Welder
The J-Weld 4 Point Horizontal Welder is an automated vinyl welding system designed for high-speed, consistent fabrication of PVC window and door frames. Its four-head configuration allows for simultaneous multi-corner welding, with each head capable of supporting up to four interchangeable pockets to accommodate different profile heights.
A servo-controlled positioning system provides precise, repeatable alignment, while dual-rate final positioning and clamping ensure both speed and accuracy. The welder’s advanced head design delivers uniform heating and clamping across all pockets, resulting in strong, cosmetically clean welds for every frame.
Key Benefits of the J-Weld 4 Point Horizontal Welder
- Four-Head Simultaneous Welding – Welds all corners at once for maximum throughput.
- Uniform Heating & Clamping – Consistent weld quality across all pockets and profiles.
- Interchangeable Pockets – Stack up to four pockets per head for flexible profile handling.
- Independent Pneumatic Clamping – Secure each pocket individually for precision fit.
- Servo Upgrade Option – Enhanced positioning accuracy and repeatability.
- Labor & Cycle Time Savings – High-speed, multi-corner welding drastically reduces operator time.
- Heavy-Duty Build Quality – Joseph Machine’s robust engineering ensures long service life.
Videos of the J-Weld 4 Point Horizontal Welder
Output Examples of the J-Weld 4 Point Horizontal Welder
- Complete welded vinyl window frames ready for corner cleaning.
- Welded PVC door frames with multiple profile heights.
- Multi-chamber extrusions welded for strength and weather sealing.
- High-throughput production runs for standardized window sizes.
Use Cases of the J-Weld 4 Point Horizontal Welder
- Vinyl Window Fabrication – Weld sashes, frames, and specialty profiles.
- Door Frame Welding – Consistent quality for large format and specialty doors.
- Multi-Profile Operations – Quick pocket changeouts for different extrusion heights.
- High-Volume Fabrication Lines – Integrate into automated pass-through welding/cleaning lines.
- Single-Piece Flow Production – Match with Joseph cleaning systems for continuous production.
key benefits
Key Benefits of the J-Weld 4 Point Horizontal Welder
- Four-Head Simultaneous Welding – Welds all corners at once for maximum throughput.
- Uniform Heating & Clamping – Consistent weld quality across all pockets and profiles.
- Interchangeable Pockets – Stack up to four pockets per head for flexible profile handling.
- Independent Pneumatic Clamping – Secure each pocket individually for precision fit.
- Servo Upgrade Option – Enhanced positioning accuracy and repeatability.
- Labor & Cycle Time Savings – High-speed, multi-corner welding drastically reduces operator time.
- Heavy-Duty Build Quality – Joseph Machine’s robust engineering ensures long service life.
videos
Videos of the J-Weld 4 Point Horizontal Welder
output examples
Output Examples of the J-Weld 4 Point Horizontal Welder
- Complete welded vinyl window frames ready for corner cleaning.
- Welded PVC door frames with multiple profile heights.
- Multi-chamber extrusions welded for strength and weather sealing.
- High-throughput production runs for standardized window sizes.
use cases
Use Cases of the J-Weld 4 Point Horizontal Welder
- Vinyl Window Fabrication – Weld sashes, frames, and specialty profiles.
- Door Frame Welding – Consistent quality for large format and specialty doors.
- Multi-Profile Operations – Quick pocket changeouts for different extrusion heights.
- High-Volume Fabrication Lines – Integrate into automated pass-through welding/cleaning lines.
- Single-Piece Flow Production – Match with Joseph cleaning systems for continuous production.
