Specialty Window & Door Fabrication Machinery

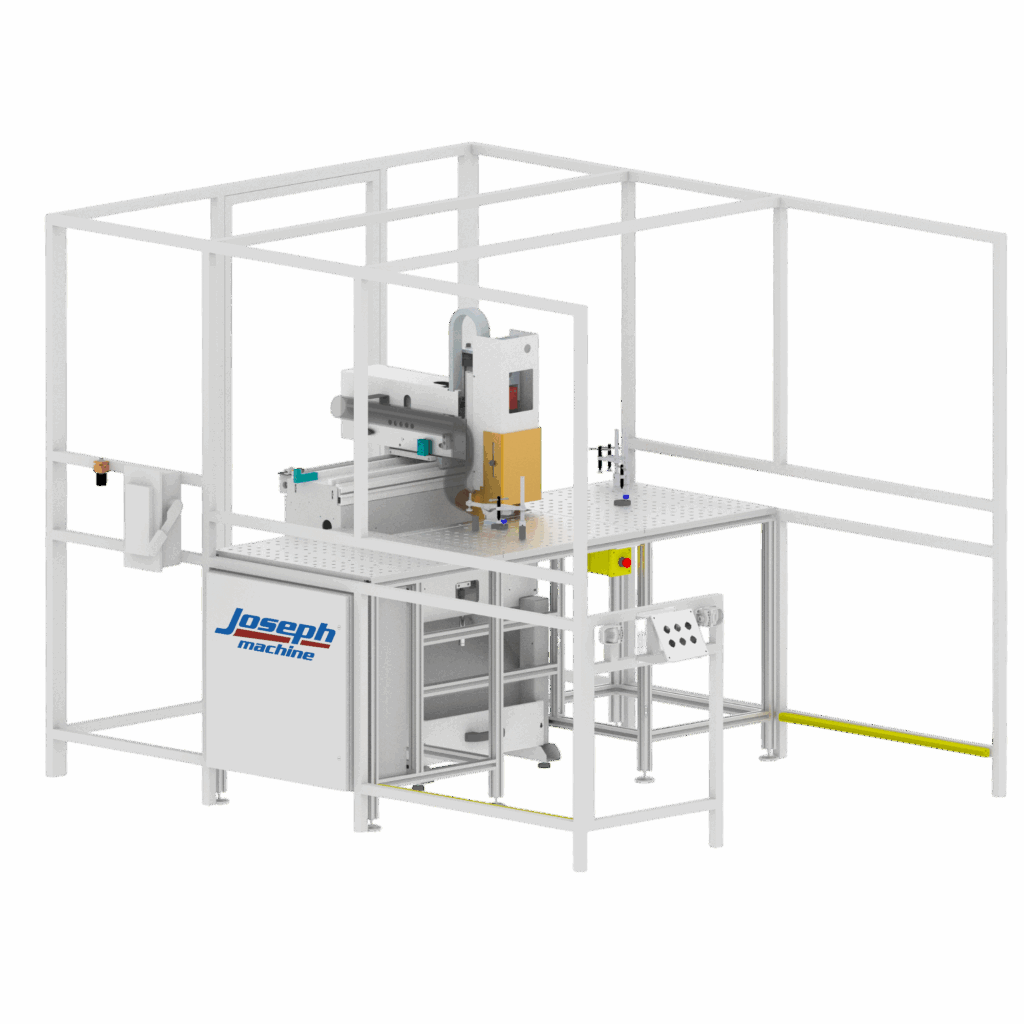

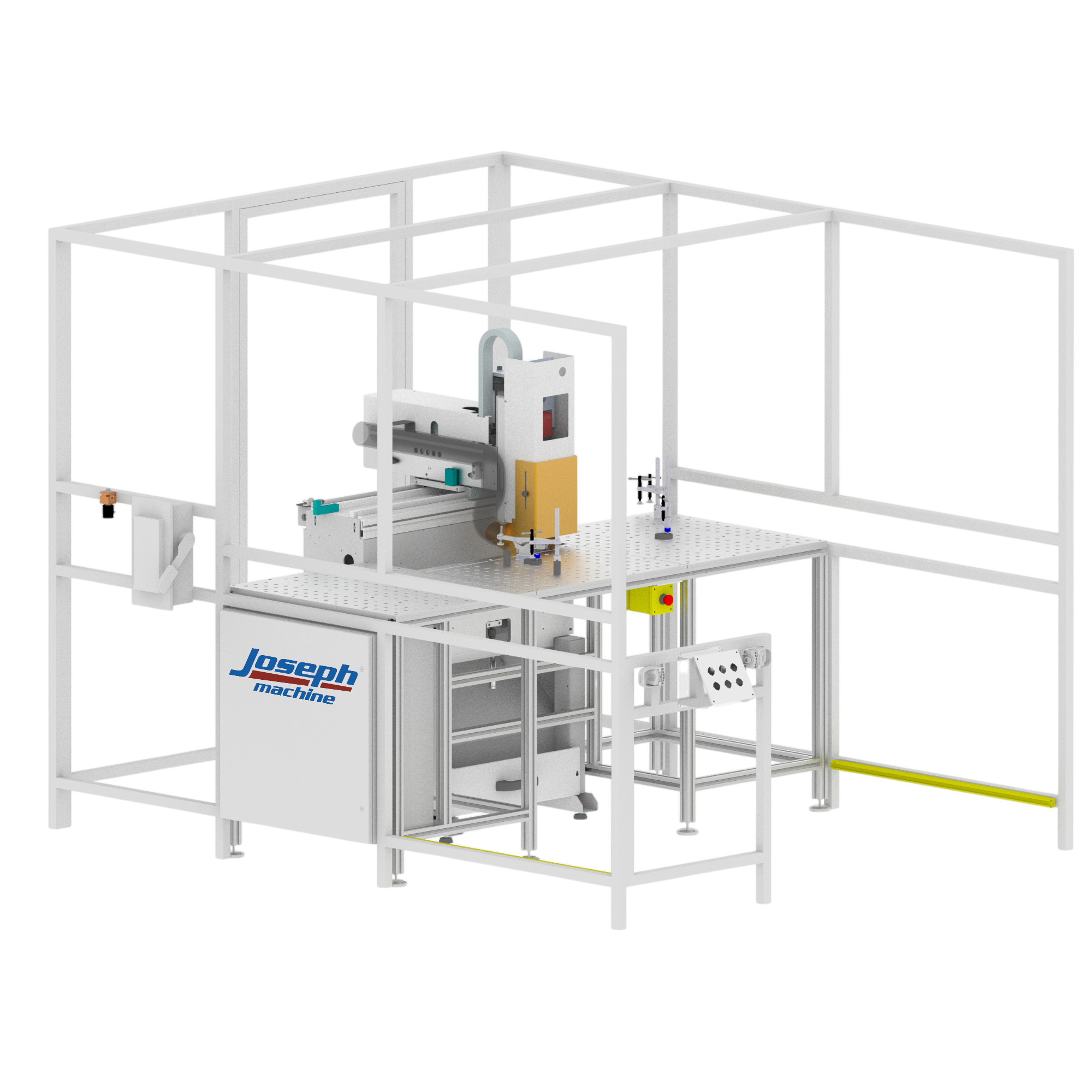

CEM CNC Endmill For Geometric Profiles
The Joseph RTM-1000 is a high-speed, dual-head miter saw engineered for exceptional accuracy in cutting complex window geometries. Featuring a fixed head and a CNC-positioned moving head with vertical bottom-up blade stroke from -22.5° to +22.5°, the RTM-1000 delivers an 8–10 second estimated cycle time while maintaining ±0.031″ cut length tolerance and ±0.5° angular tolerance. Its ball screw-driven positioning system and integrated perpendicular outrigger support make it ideal for processing arched, gabled, octagon, and specialty-shaped profiles with consistent, repeatable accuracy.
Key Benefits of the RTM-1000
- Dual adjustable angle saws (-22.5° to +22.5°) for versatile geometric cuts.
- Ball screw positioning for both moving head and perpendicular support arm.tant.
- Vertical blade stroke from bottom for cleaner cuts and reduced burrs.
- Integrated outrigger support for arched and specialty-shaped profiles.
- ±0.031″ cut length tolerance and ±0.5° fabrication tolerance for high-precision results.
- 8–10 second cycle time for fast production throughput.
Videos of the RTM-1000
Output Examples of the RTM-1000
- Perfectly matched mitre joints for octagon window frames.
- Consistent angled cuts for gable-style window systems.
- Smooth, burr-free cuts on curved and specialty extrusions.
- High-speed batch processing of geometric window components.
Use Cases of the RTM-1000
- Round Top Windows & Sills – Precision cutting of curved profiles.
- Gabled Windows – Consistent mitre accuracy for complex angles.
- Octagon Windows – Accurate multi-sided cuts with repeatable setups.
- Custom Aluminum & PVC Profiles – High tolerance cutting for architectural and specialty shapes.
