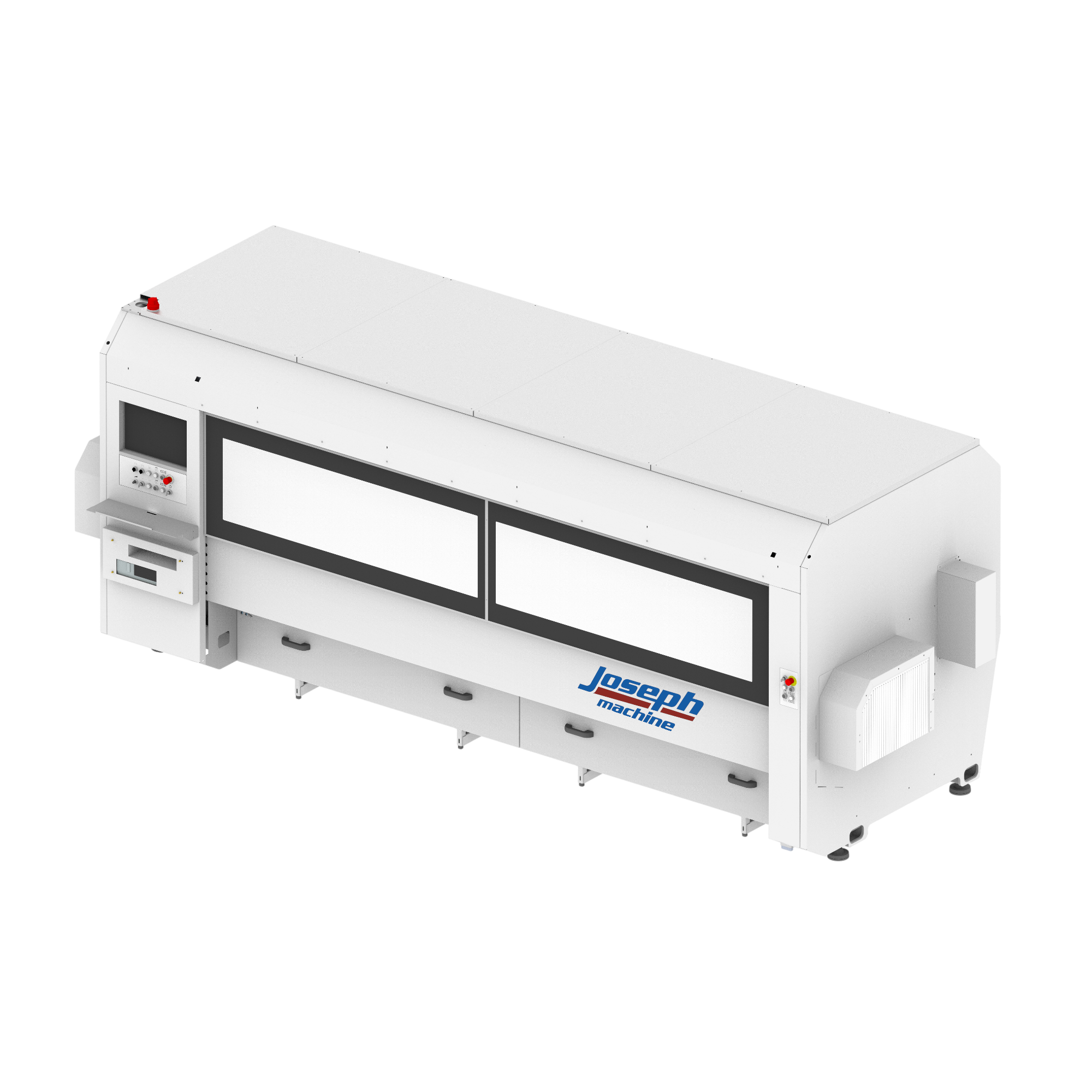

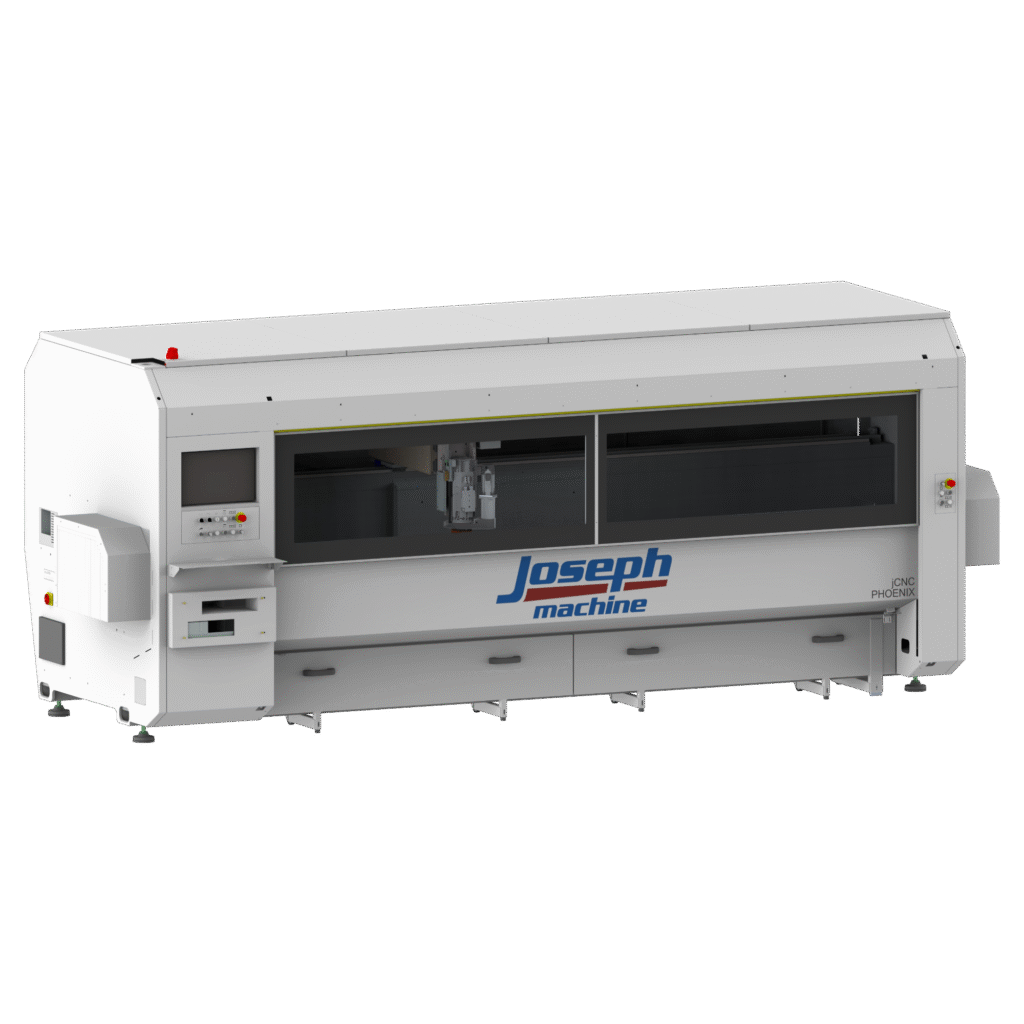

jCNC PHOENIX
The jCNC PHOENIX is a high-precision CNC machining center with a 3-axis tooling head plus a servo-driven rotating work bed, providing a total of 4 controlled axes. Built on a solid electro-welded steel frame for maximum stability, it is designed for precision processing of aluminum, PVC, light alloys, and other extrusions. The rotating bench pivots to 90°, 0°, and -90° for multi-side machining without repositioning the profile, increasing efficiency and accuracy. Controlled by a Siemens industrial PC running dedicated software with a Windows interface, the PHOENIX offers intuitive programming, CAD/CAM integration, and optional pendulum working for continuous production. An automatic tool changer with 7 positions (optional 10) supports flexible fabrication, while four adjustable clamps secure workpieces of varying lengths, including bars longer than the machine itself.
Key Benefits of the jCNC PHOENIX
- 4-Axis Capability — 3-axis tooling plus a servo-controlled rotating bed for multi-side machining without repositioning.
- Solid, Rigid Construction — Electro-welded steel frame minimizes vibration and ensures long-term accuracy.
- Automatic Tool Change — 7-position tool changer (optional 10) speeds changeovers and supports complex machining sequences.
- Large Machining Envelope — X-axis lengths of 2500, 3000, or 4000 mm, with capability to machine longer bars.
- Fast Axis Movement — Travels up to 60 m/min on X-axis for efficient throughput.
- Precision Clamping — 4 adjustable clamps hold work securely, with options for automatic clamp displacement.
- User-Friendly Interface — Siemens controls with dedicated software and Windows interface.
- Flexible Production — Optional pendulum mode for continuous, alternating work zone operation.
- Optional High-Speed Spindle — Inverter option boosts spindle speed from 12,000 to 18,000 rpm for fine finishing.
- Optional Window Production Integration – software to make bringing in production files from popular window ERP systems like fenevision and tooling macros to allow operators to run the machine with zero technical input
Videos of the jCNC PHOENIX
Output Examples of the jCNC PHOENIX
- Window & Door Components – Machining of hinge ports, drainage slots, and lock hardware pockets.
- Curtain Wall & Storefront Systems – Multi-side milling and drilling of mullions, transoms, and connector profiles.
- Architectural Trim & Molding – Routing, notching, and slotting for decorative and structural profiles.
- Data Center Infrastructure – Machining of rails, brackets, and cable management channels.
- Transportation Industry – Extruded aluminum profiles for RVs, buses, trailers, and railcars with complex end features.
- Solar Energy Systems – Machined mounting brackets, cross members, and racking profiles.
- Industrial Assemblies – Guard rails, enclosure frames, and machine base components.
Use Cases of the jCNC PHOENIX
- Fenestration & Architectural Systems
- Precision machining of multi-face window and door profiles.
- Complex notching and slotting for curtain wall frame assembly.
- Industrial Fabrication
- Structural support profiles for enclosures and assembly systems.
- Machined features for automation and material handling equipment.
- Transportation & Vehicle Manufacturing
- Multi-angle profile machining for vehicle frame and body construction.
- Accessory feature machining for aluminum structural members.
- Energy & Technology Infrastructure
- Machining of solar mounting system components.
- Structural features for data center containment and racking systems.
- Specialty & Custom Manufacturing
- Complex multi-angle machining for custom architectural installations.
- Short-run precision part manufacturing from long extrusions.
