UCFM-1000

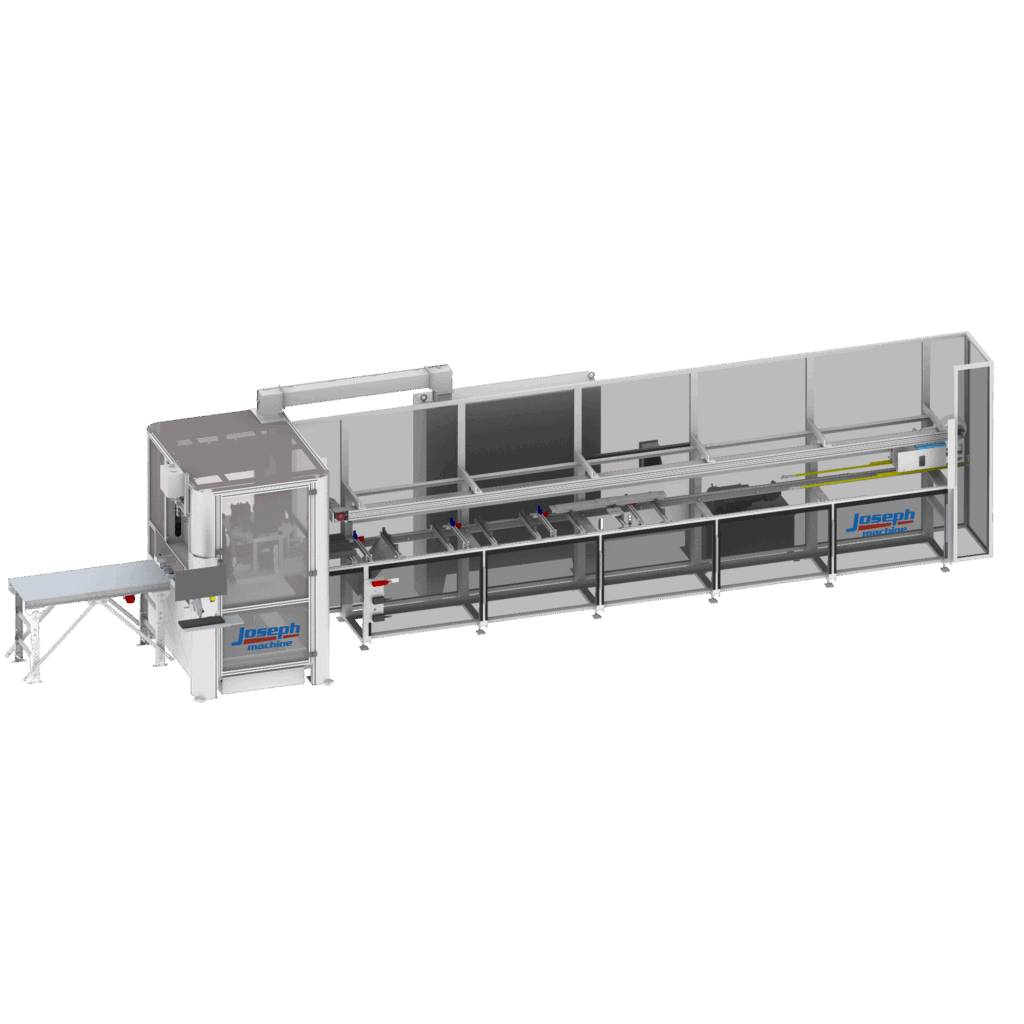

The UCFM is an automated straight-cut saw equipped with a hydraulic unit and servo-controlled in-feed. It is a flexible machine that accepts various interchangeable fabrication modules. The material is cut to length and fabricated and can be optionally networked for file download capability.

  • Estimated Machine Cycle time: 4-6 seconds cut to cut
  • Cut length Tolerance: ±0.010
  • Fabrication Location Tolerance: ±0.010
  • Fabrication Tolerance: ±0.010
  • Ergonomic working height, fine adjustments made via leveling feet
  • Heavy duty powder coated tubular steel frame
  • Removable debris tray
  • 1/2” Filter/Regulator with OSHA compliant lockout/tagout
  • Coalescing air filter
  • One 90 degree saw assembly equipped with a 3 HP motor and 16” carbide tipped saw blade
  • Saw pivots about roller bearings activated by air over oil pneumatic cylinder
  • Flow controlled saw stroke
  • 17.5 GPM Hydraulic unit
  • Infeed
    • Servo controlled Infeed accommodates 16’ lineal
    • Left to Right or Right to Left feed orientation
    • Thru-Beam photo eyes for mill length detection
  • Electrical: 480V AC(15A – 3 Phase)
  • Fusible disconnect with OSHA compliant lockout/tagout
  • Controls – combined PC + PLC control system
  • Networkable
  • Production data can be downloaded using JMC CSV file format
  • Fixtures:
    • 2 or multi track custom fixtures
    • Pneumatic/Hydraulic custom tooling for fabrication
    • Machined anodized aluminum fixture
    • Alternative fixture material and coatings available
    • Vertical/Horizontal clamping
    • Fixture Identification
  • Saws
    • 18” or 20” diameter carbide tipped saw blade
    • 5 HP motor
    • Variable frequency drive with brake
  • Infeed
    • Optional infeed lengths accommodate 20’ or 24’ lineals
    • Single set pre-loader to accommodate 16’, 20’, or 24’ lineals
    • Double set pre-loader to accommodate 16’, 20’, or 24’ lineals
    • Diffuse photo eyes for independent mill length detection
    • Quick change infeed gripper and UHMW guides
    • Linear encoder
  • Outfeed
    • 5’ table with stainless steel top
    • 10’ roller table
    • Power conveyor
    • Wiper table
  • Software Options
    • Lineal Optimization
    • Tail End utilization by stock parts or future batch parts
    • Label printing
  • Controls
    • Touch screen monitor
    • Additional monitor for infeed/outfeed
    • Variable frequency drive with brakes
    • Upgraded safety packages
    • Transformers available for different voltages
  • Custom color powder coating
  • Pro-Lube lubrication system for cutting
  • Auto-Lube system for machine lubrication
  • Dust collection system

CUT_FAB – UCFM – 221010
