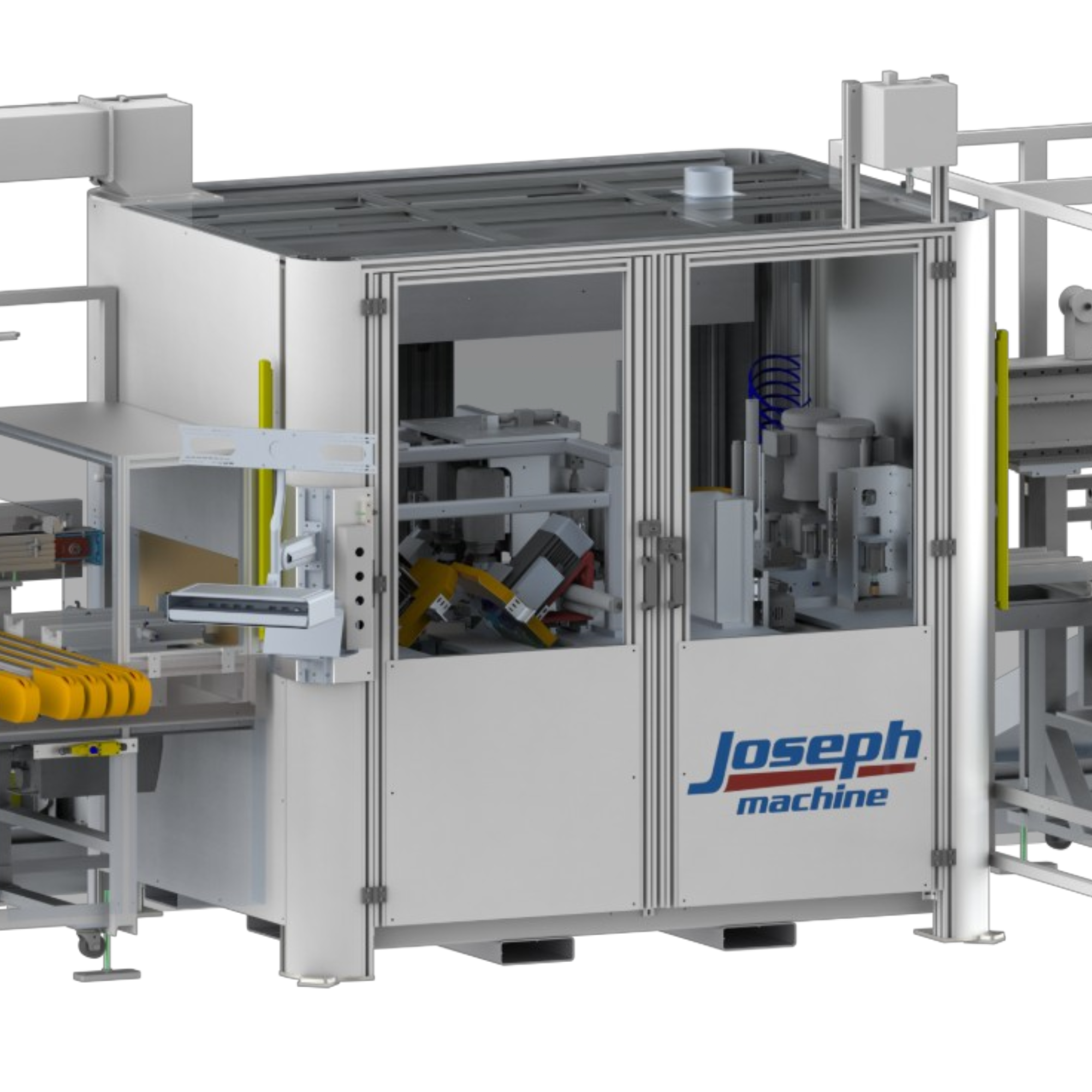

SFMC Machining Center

Step through machining center with pusher infeed and customer specified hydraulic, pneumatic and servo-controlled tooling, to enable processing of PVC, aluminum, fiberglass or composite materials.





  • Estimated cycle time: to be determined by fabrication
  • Ergonomic working height, fine adjustments made via leveling feet
  • Heavy duty machined, powder coated, tubular steel frame with chip pans
  • Scrap chute at outfeed
  • 1/2” Filter/Regulator with OSHA compliant lockout/tagout
  • Coalescing air filter
  • Two 45 degree saws equipped with 3 HP motors and 16” carbide tipped saw blades
  • Saws pneumatically activated by Air/Oil cylinders
  • Flow controlled saw stroke
  • Standard saw guards with vacuum port
  • Saw carriage ride on precision ground rails and linear bearings
  • Infeed
    • Servo controlled Infeed accommodates 16’ lineal
    • Left to Right or Right to Left feed orientation
    • Thru-Beam photo eyes for mill length detection
  • Outfeed – 18” x 60” power outfeed conveyor
  • Electrical: 480V AC(15A – 3 Phase)
  • Fusible disconnect with OSHA compliant lockout/tagout
  • Controls – combined PC + PLC control system
  • Networkable
  • Production data can be downloaded using JMC CSV file format
  • Fixtures:
    • 2 or multi track custom fixtures
    • Machined anodized aluminum fixture
    • Alternative fixture material and coatings available
    • Vertical/Horizontal clamping
    • Fixture Identification
    • Custom tooling for fabrication
    • Drill transmission assemblies
    • Pneumatic drill/punch assemblies
  • CNC routers/tooling
    • Saws
    • 18”, 20”, 22” diameter carbide tipped saw blade
    • Multi positioned 45 degree pneumatically operated saw assemblies
    • 2 axis servo-controlled positioning of 45 degree saws via ball screw
    • Overhead vertical/horizontal stroke jamb notch saw assemblies
    • Overhead vertical/horizontal stroke sill notch saw assemblies
  • Infeed
    • Optional infeed lengths accommodate 20’ or 24’ lineal

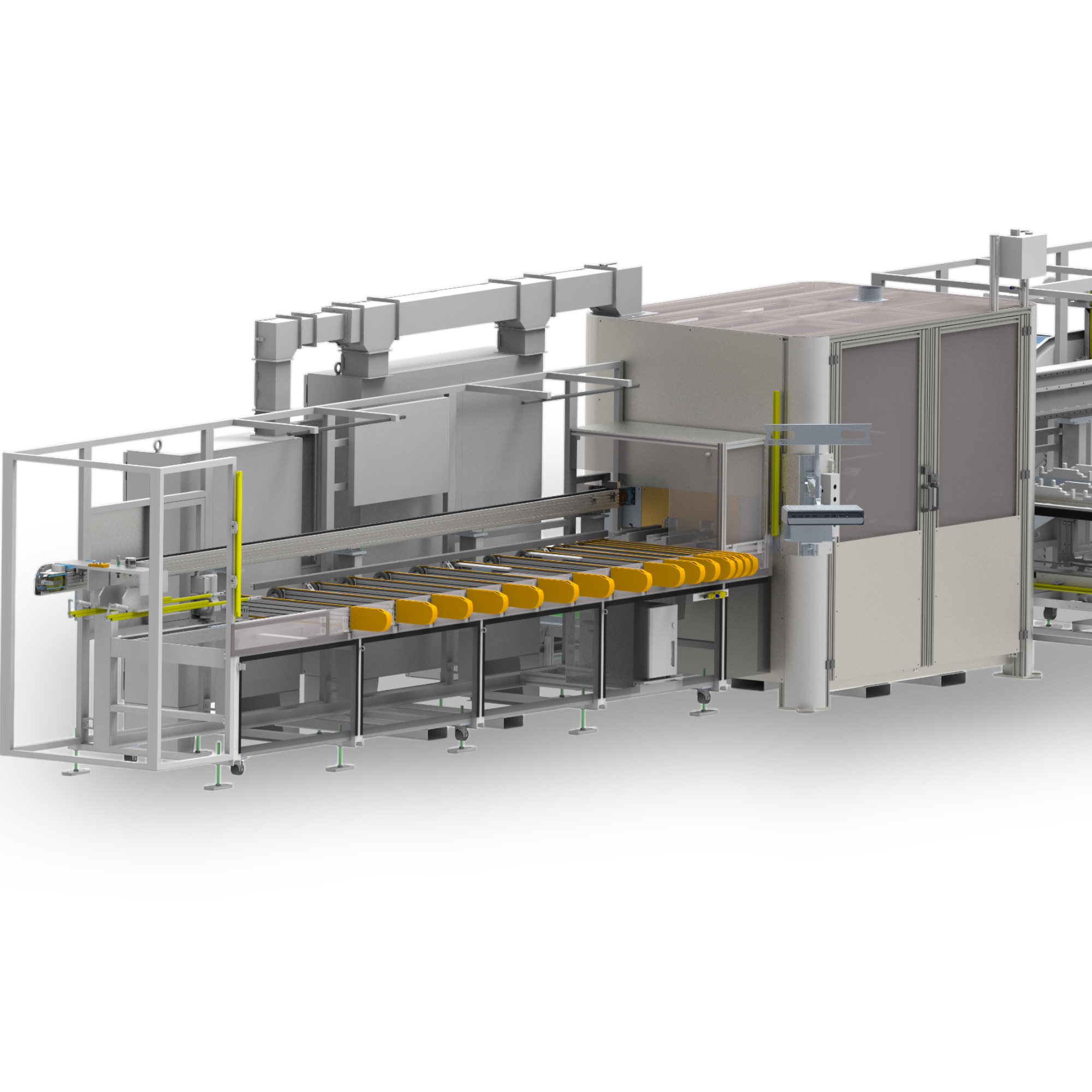

    • Single set pre-loader to accommodate 16’, 20’, or 24’ lineals
    • Double set pre-loader to accommodate 16’, 20’, or 24’ lineals
    • Diffuse photo eyes for independent mill length detection
    • Quick change infeed gripper and UHMW guides
    • Dual infeed system
    • Linear encoder
  • Outfeed
    • 5’ table with stainless steel top
    • 10’ roller table
    • Power conveyor
    • Wiper table
    • Extractor system
  • Software Options
    • Lineal Optimization
    • Preventative Maintenance software for tooling
  • Tail End utilization by stock parts or future batch parts
    • Lineal Optimization
    • Label printing
    • Controls
    • Touch screen monitor
    • Additional monitor for infeed/outfeed
    • Variable frequency drive with brakes
    • Upgraded safety packages
    • Transformers available for different voltages
    • Custom color powder coating
    • Pro-Lube lubrication system for cutting
    • Auto-Lube system for machine lubrication
    • Dust collection systems
    • Laser part marking

CUT_FAB – SFMC – 221010
