J-Weld 4 Point Vertical Welder

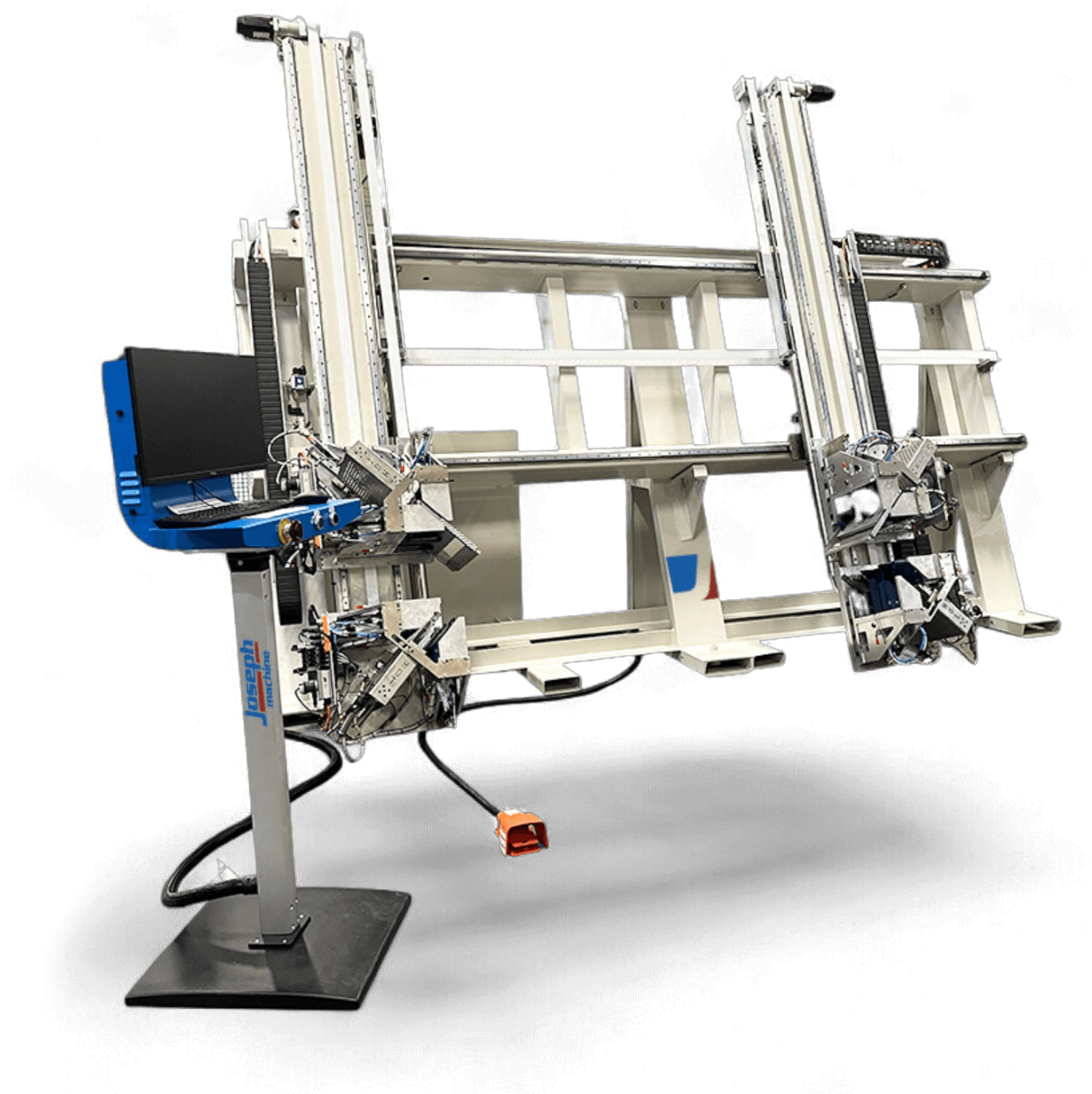

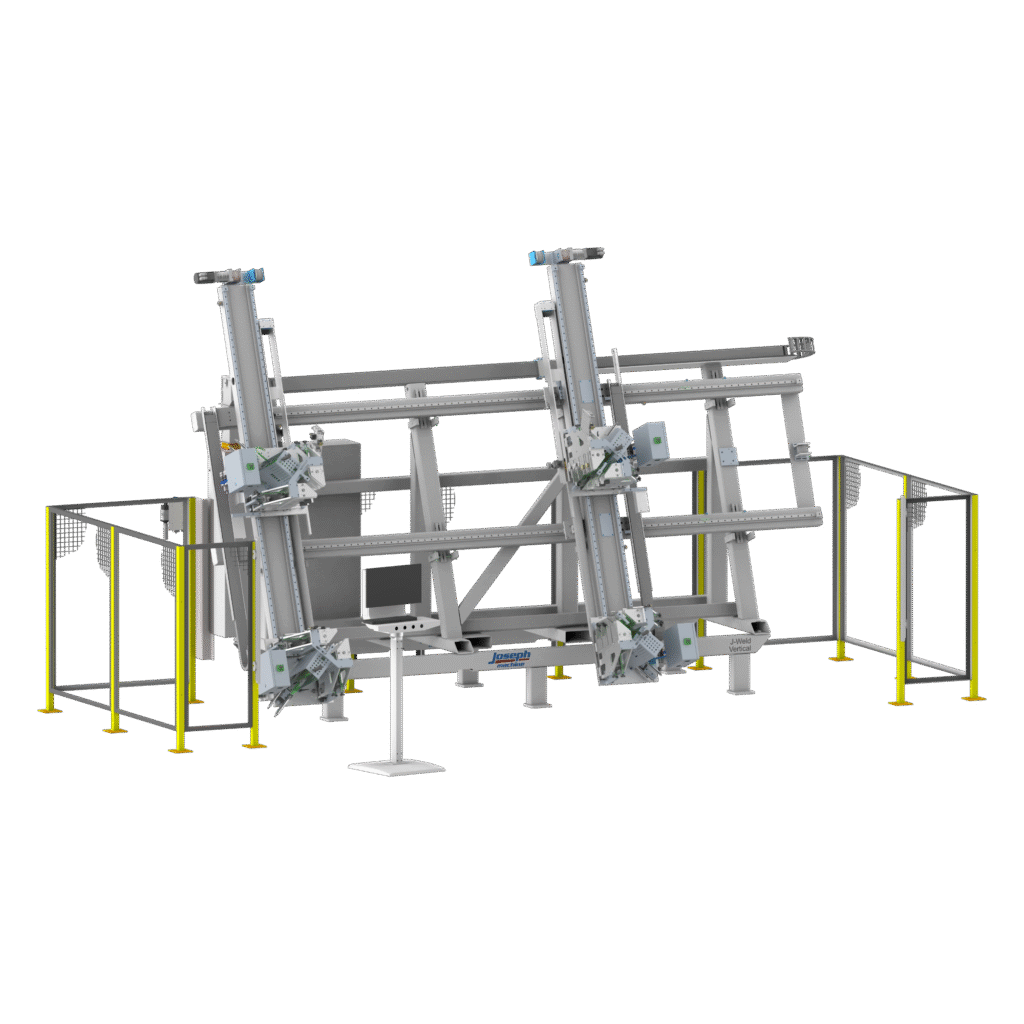

J-Weld automated vertical four-point welder. Up to 4 pockets per head with servo controlled positioning and dual rate final positioning and clamping. Head design enables uniform heating and clamping across all pockets to ensure consistent, high-quality welds.

Vertical Standard Sizes
– 60×60
– 80×100
– 90×120
– 100×150

Machine Base
• Welded steel base frame and beams
• Fixed Bridge (Left Side)
• Stationary head (XL)
• Servo/belt drive positioned moving head (YL)
• Moving Bridge (Ride Side)
• Servo/belt drive positioning of beam (XR, YR)
• Servo/belt drive positioned moving head (YR)
• Four weld head assemblies
• Cast aluminum heat plates

• 15” height capacity
• 3000 Watt heat plates
• Pneumatic actuation of heat and locator plate
• Pneumatic actuation of fixture towers locating
• Independent Pressure & Temperature controls
• Weld burnoff sensors



  • Fixtures:
    • 2 to 4 pocket weld fixtures
    • Pneumatic sequenced clamping system
    • Machined anodized aluminum fixtures with individual pocket clamping
    • 15” height capacity for clamp fixtures
  • Custom color powder coating
  • Servo positioning using ballscrews
  • Welding
    • Notched heat plates for sloped sill application
    • Quick change, heavy duty, copper based Teflon foil
  • Controls
    • Touch screen monitor
    • Upgraded safety packages
    • Transformers available for different voltages
    • Auto sizing via barcode scanning

WELD – JWeld 4 Point Welder – 221012
