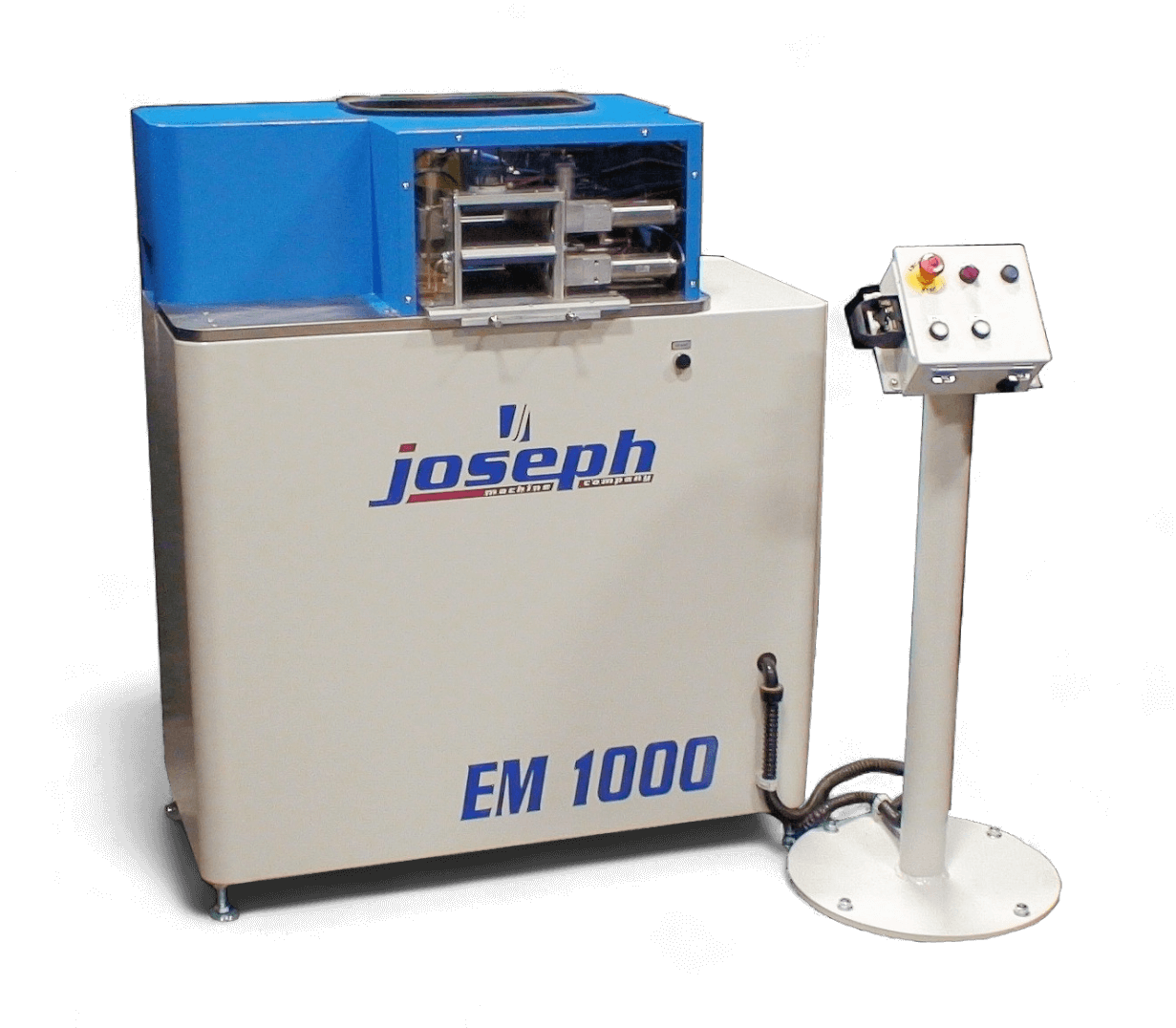

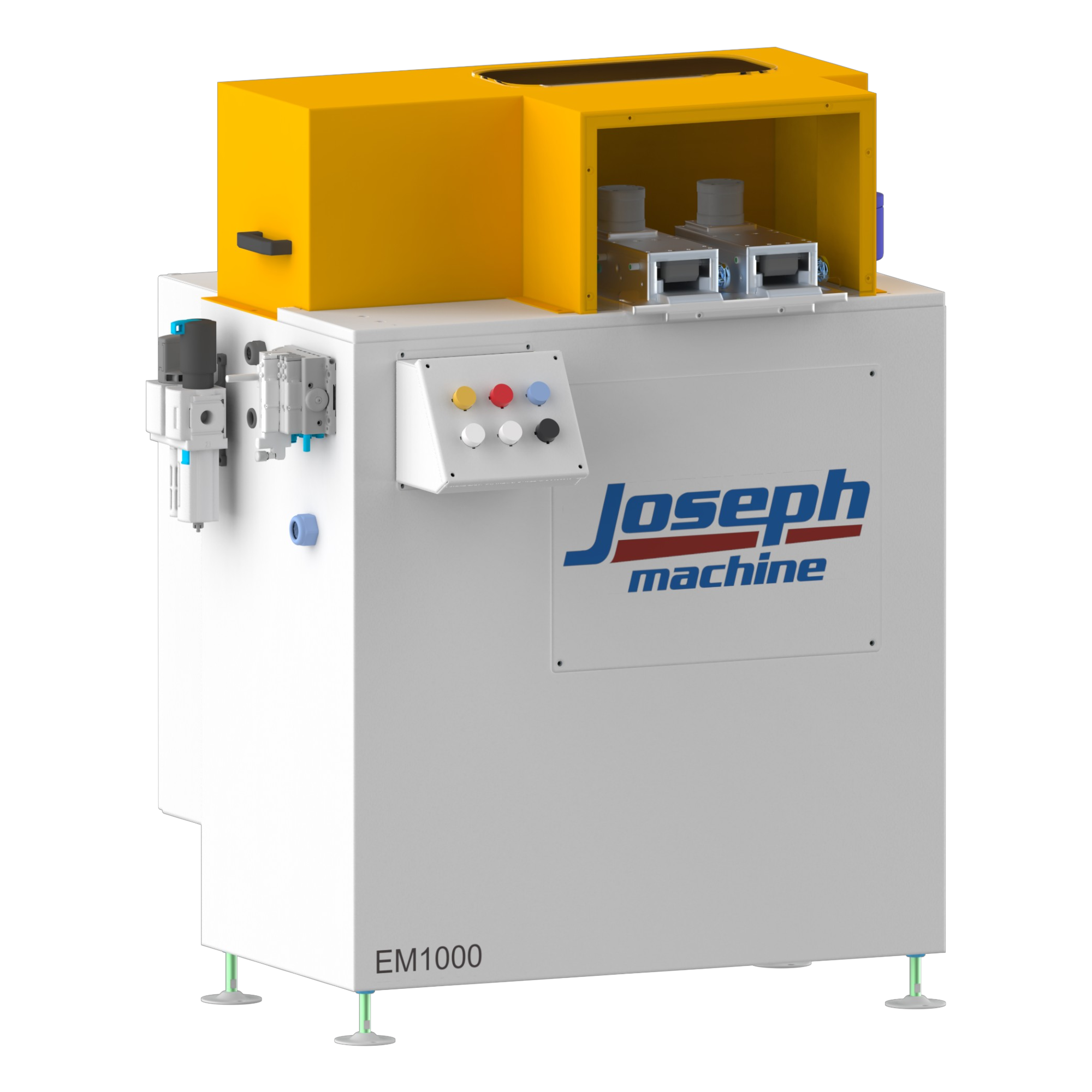

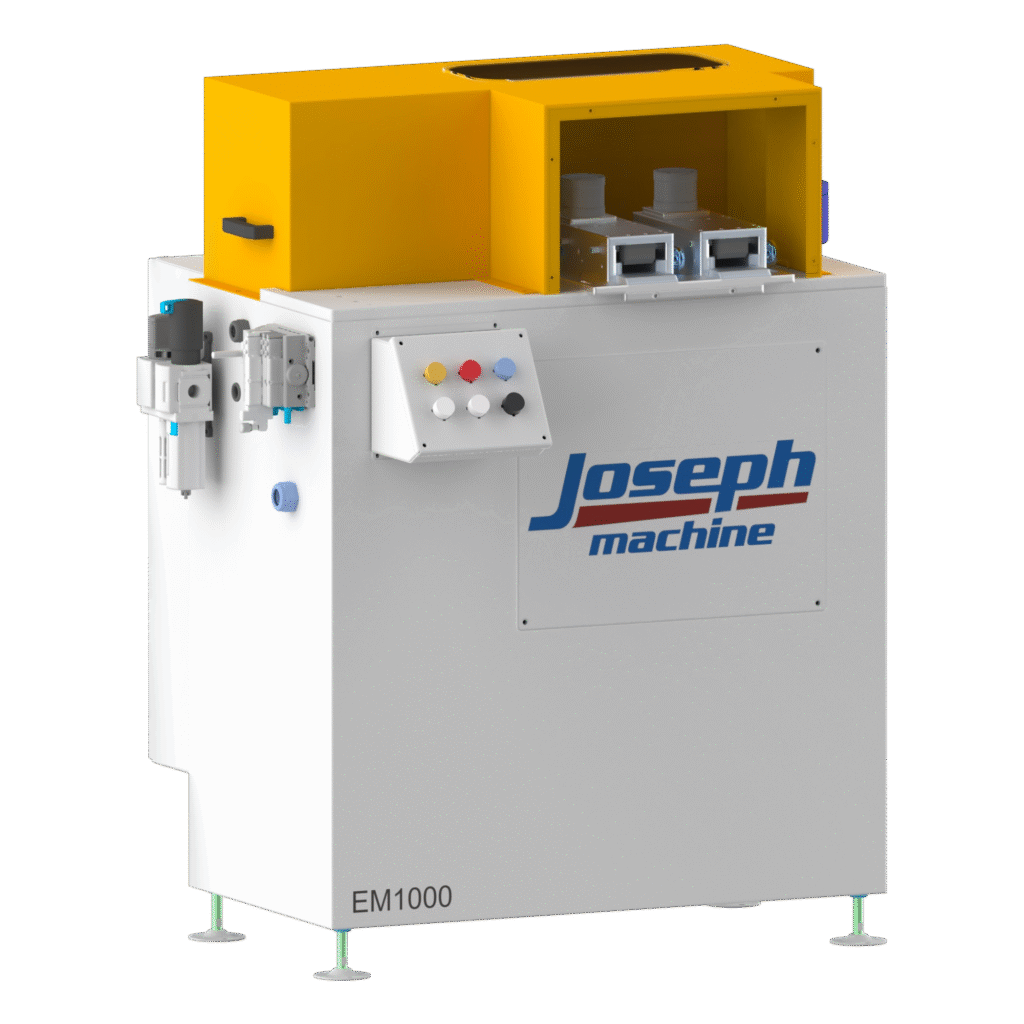

EM-1000 END MILL

End mill fabrication and coping with pneumatic driven head.

  • Has a 7”H x 9”W cut zone
  • Estimated Cycle time: 15-18 seconds per cycle
  • Fabrication Tolerance: ±0.010
  • Ergonomic working height (from 38-1/2” to 44”), fine adjustments made via leveling feet
  • Heavy duty powder coated steel frame
  • Chip diverter to vacuum port
  • 1/2” Filter/Regulator with OSHA compliant lockout/tagout
  • Coalescing air filter
  • Machine lubrication – Grease fittings at each linear bearing
  • Equipped with a 4hp (3400rpm) motor (Keyed 30mm Spindle)
  • Motor carriage rides on precision ground rails and linear bearings
  • Pneumatically activated by Air/Oil cylinder
  • Manually adjustable flow control on cutter stroke cylinder
  • Electrical: 480V AC(15A – 3 Phase)
  • Fusible disconnect with OSHA compliant lockout
  • Controls – PLC control system
  • Electrical foot pedal activation
  • Fixtures:
    • One or multi pocket fixtures customized based on profiles
    • Machined anodized aluminum fixture
    • Custom tooling for fabrication
    • Alternative fixture material and coatings available
    • Vertical/Horizontal clamping
    • Material stop
  • Cutter stack
    • Single custom carbide tipped cutter stack
    • Multiple cutter stacks available within cut zone limit
  • Infeed
    • Enclosed material support table
    • Stainless Steel support table
  • Controls
    • Electrical 2-Hand Tie Down available
    • Variable frequency drive
    • Transformers available for different voltages
  • Custom color powder coating
  • Pro-Lube lubrication system for cutting
  • Auto-Lube system for machine lubrication
  • Dust collection system
