CGM-QC

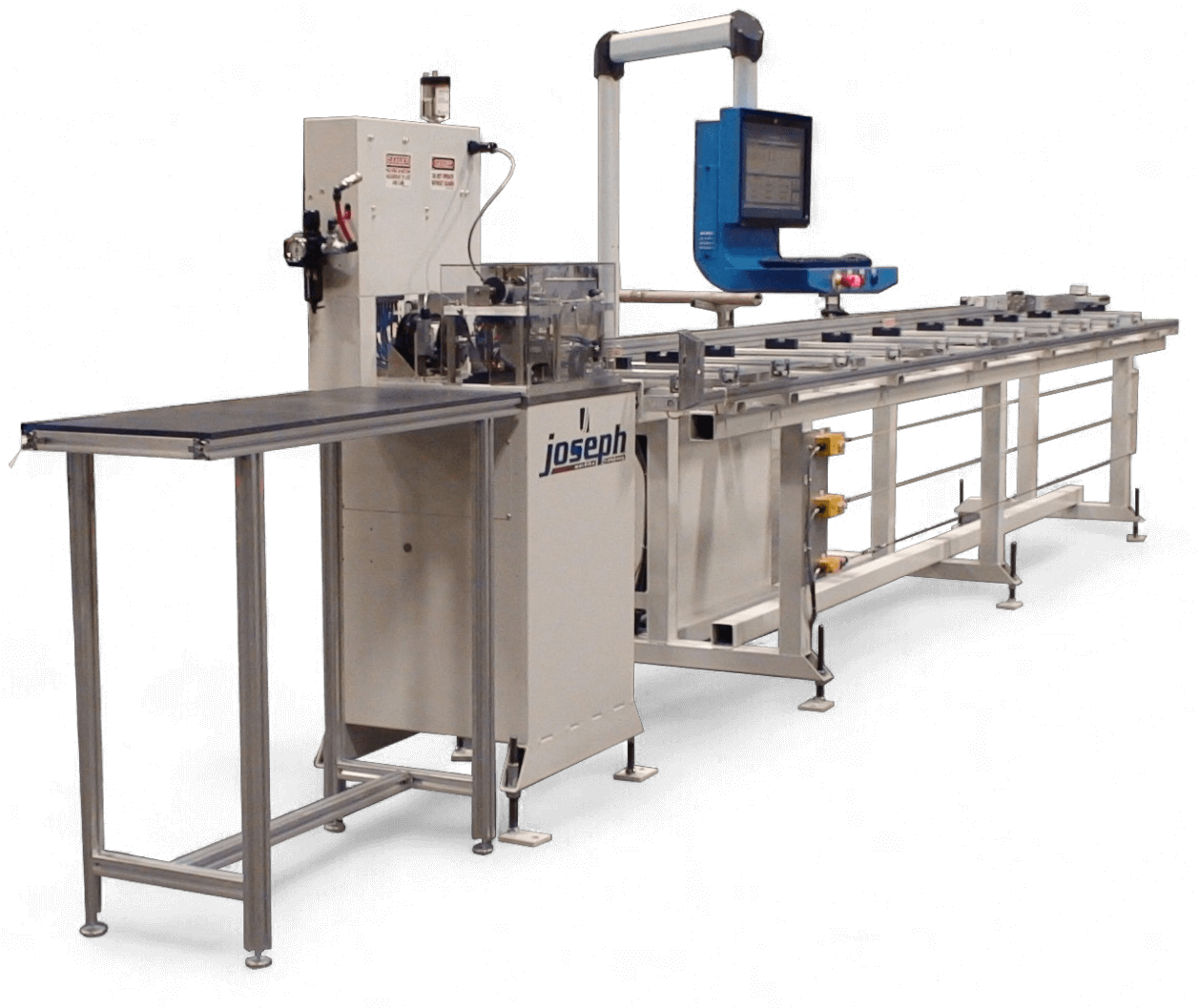

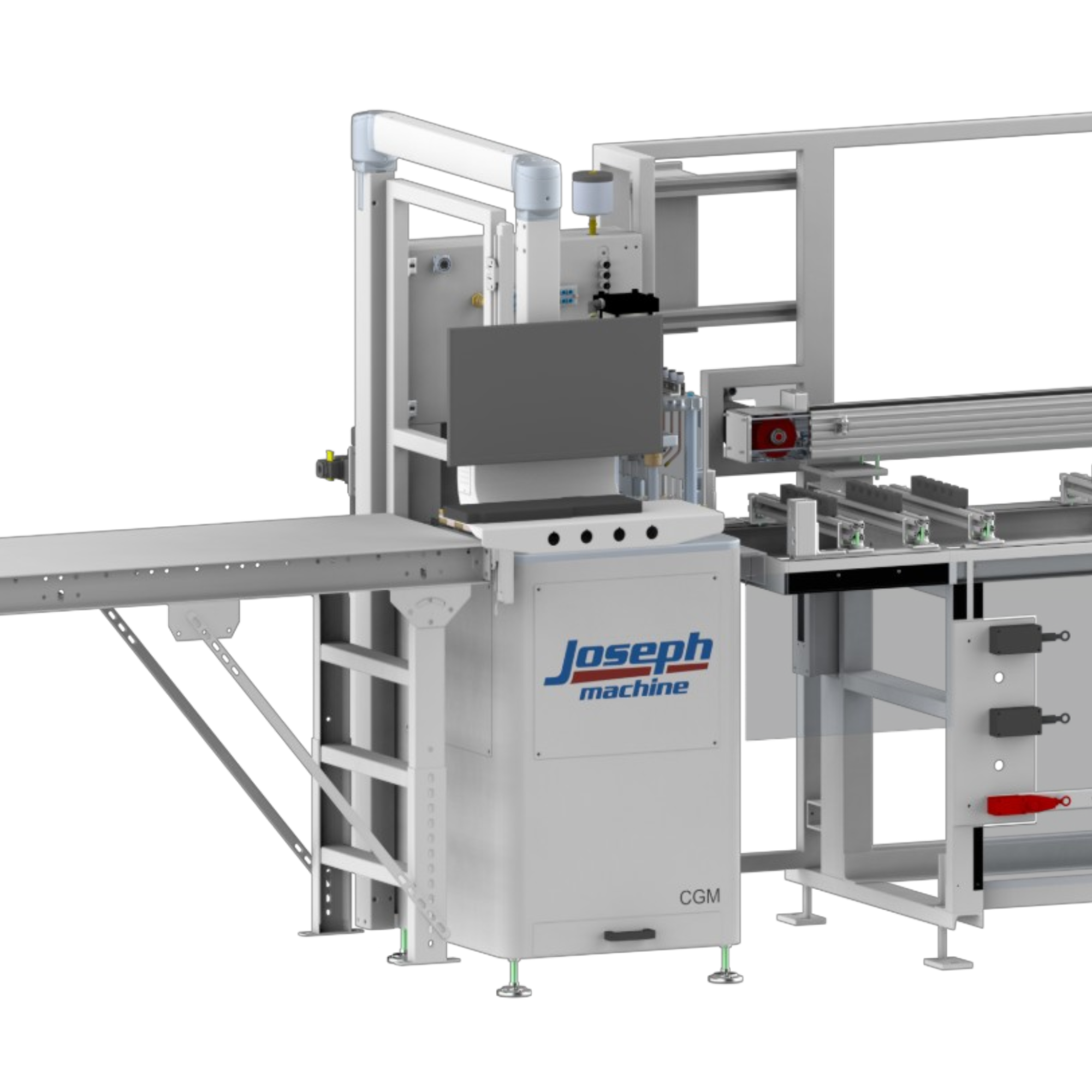

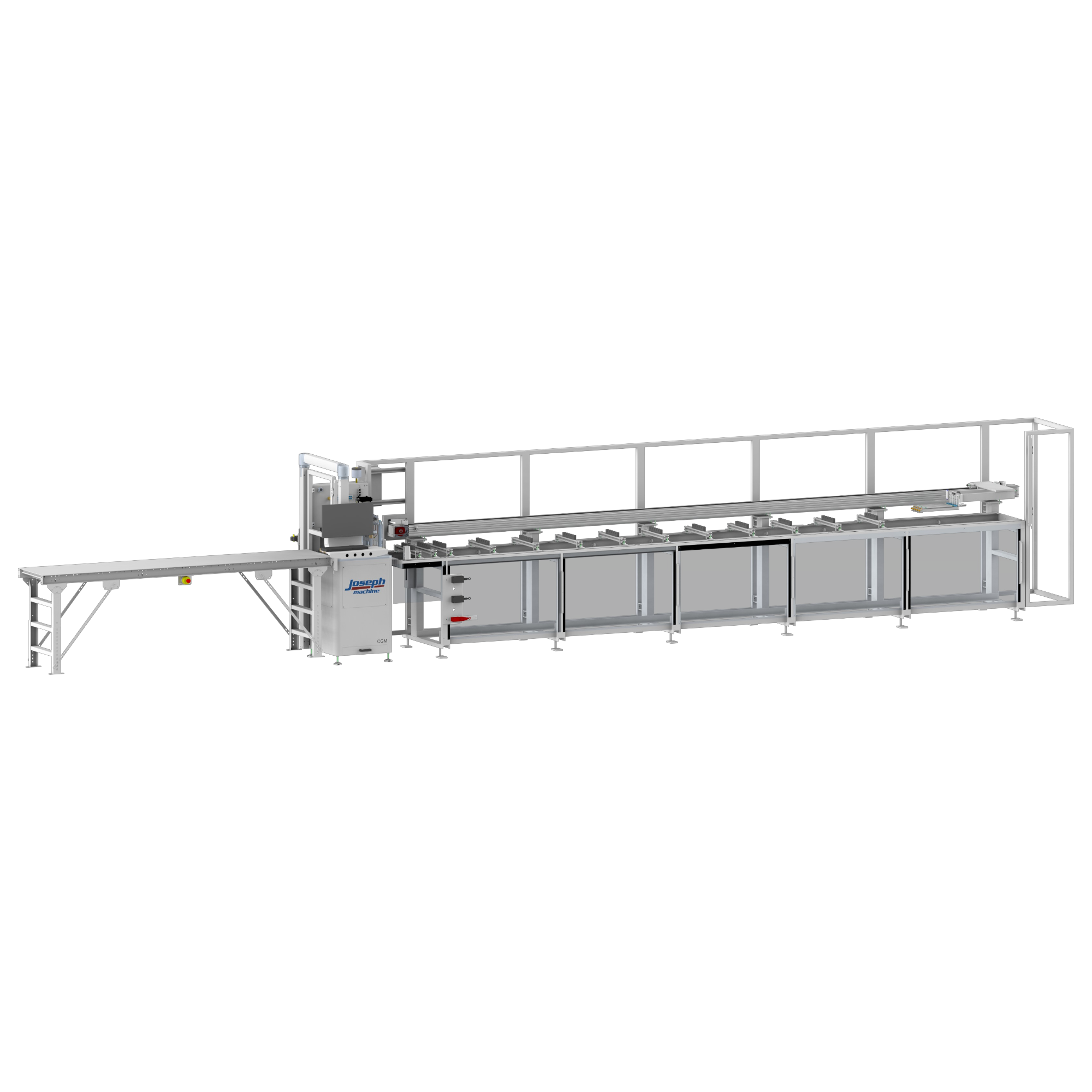

The Joseph CGM-QC is a high-efficiency grid bar cutting and notching system engineered for precision fabrication of muntin bars, screen frames, and other die-cut profile types. Equipped with a servo-controlled in-feed and an automated straight-cut saw, the CGM-QC ensures consistent part lengths and high-quality notching. An optional die module further expands its fabrication capability, while the JMC Grid Maker graphical interface automatically calculates cut lengths and notching patterns based on the entered window dimensions and grid light layout—streamlining setup and eliminating manual measurement errors. Quick-change fixtures and die modules allow the CGM-QC to handle multiple grid profile types and other multi-track, die-cut extrusion designs, making it an adaptable platform for a wide range of applications beyond grid bars. With the ability to process up to 5 material tracks per fixture and lineal capacities up to 16 feet, it delivers unmatched throughput and flexibility for both dedicated grid production and mixed-profile fabrication environments.
Key Benefits of the CGM-QC
- Automated grid bar cutting & notching with servo in-feed.
- JMC Grid Maker interface for automated length and notch calculation.
- Quick-change fixtures and die modules for multiple profile types.
- 16′ lineal capacity for large format parts.
- Overlap notch punching capability.
- Up to 5 material tracks per fixture for high-volume runs.
- Optional die module for specialized fabrication.
- Rugged construction for industrial duty.
Videos of the CGM-QC
Output Examples of the CGM-QC
- Fully notched muntin bars ready for assembly.
- Multi-track extrusions cut and punched in a single pass.
- Screen frame lengths with clean, accurate end cuts.
- Complex die-cut patterns for custom profile applications.
Use Cases of the CGM-QC
- Muntin / grid bar cutting and notching for windows & doors.
- Screen frame profile fabrication.
- Multi-track aluminum and PVC profiles requiring precision die-cutting.
- High-volume architectural trim and light structural extrusion processing.
